Niaux Cave maps, plans and aerial photos

Click on the photos to see an enlarged version

Pyrenees


My first view of the Pyrenees in southern France.

Photo: Don Hitchcock 2008

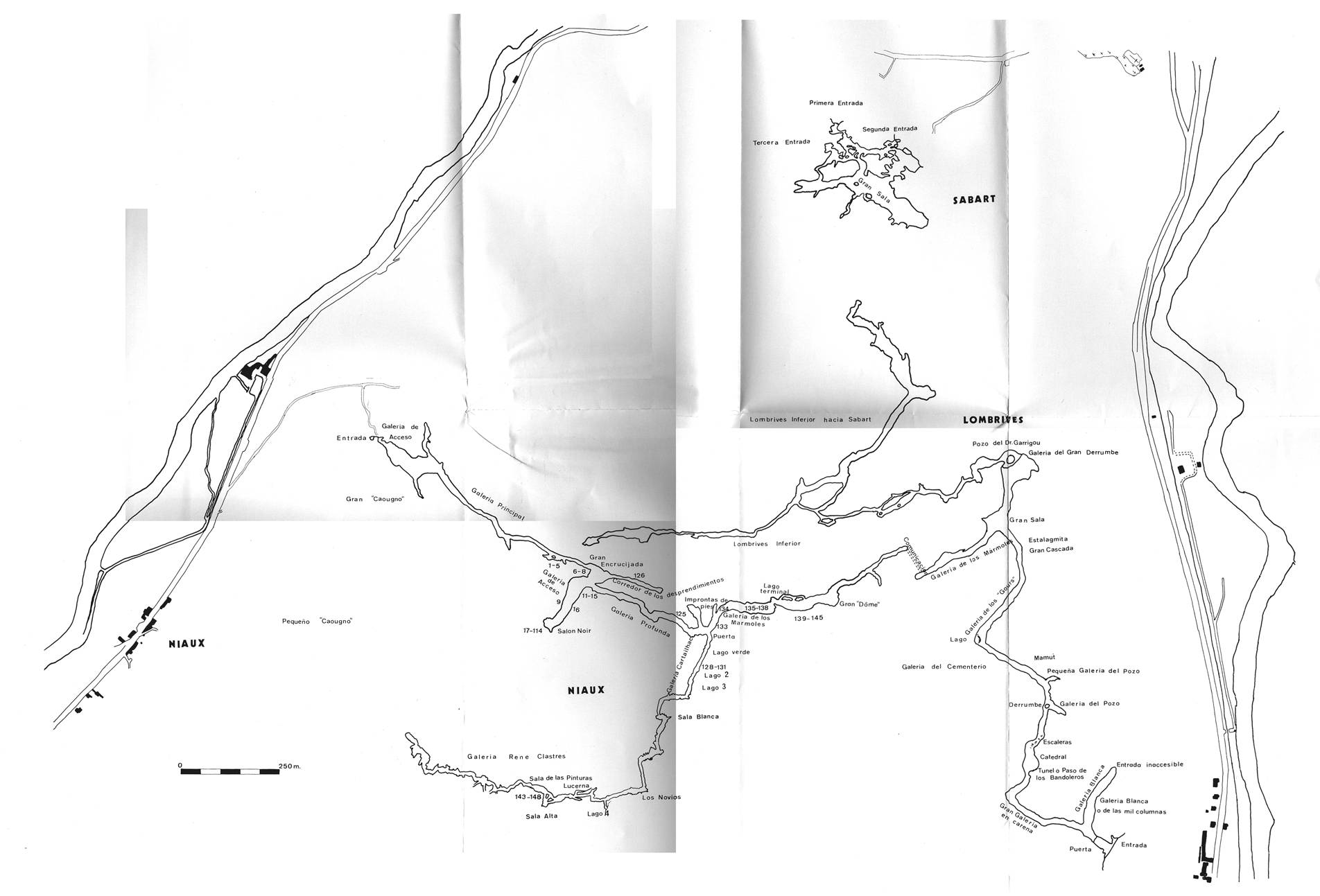

aerial map Niaux
Aerial photo of the Niaux Caves area.

Note that this photo was printed upside down in the text, and has been reoriented and enhanced to remove the fading in my copy.

Photo: Martinez (1973)




niaux map

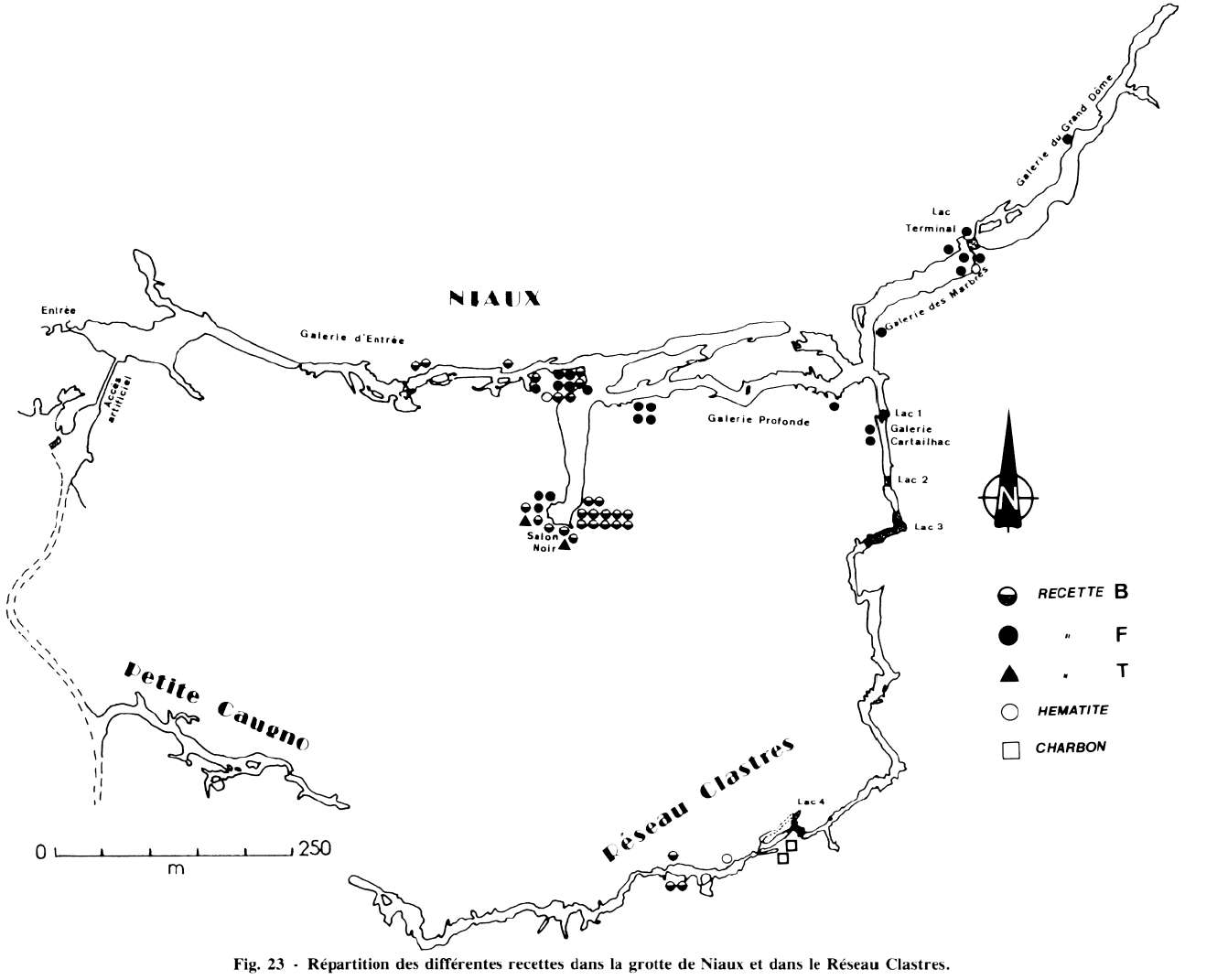

Niaux map of the caves

Photo: Clottes, J. et al (1990)




niaux/mas d'azil map

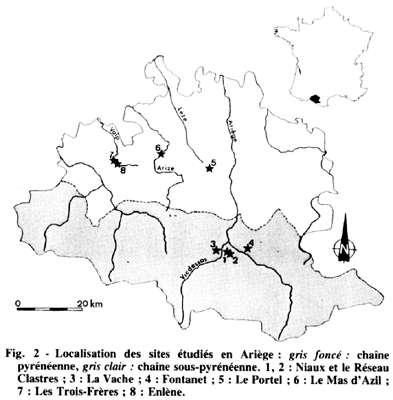

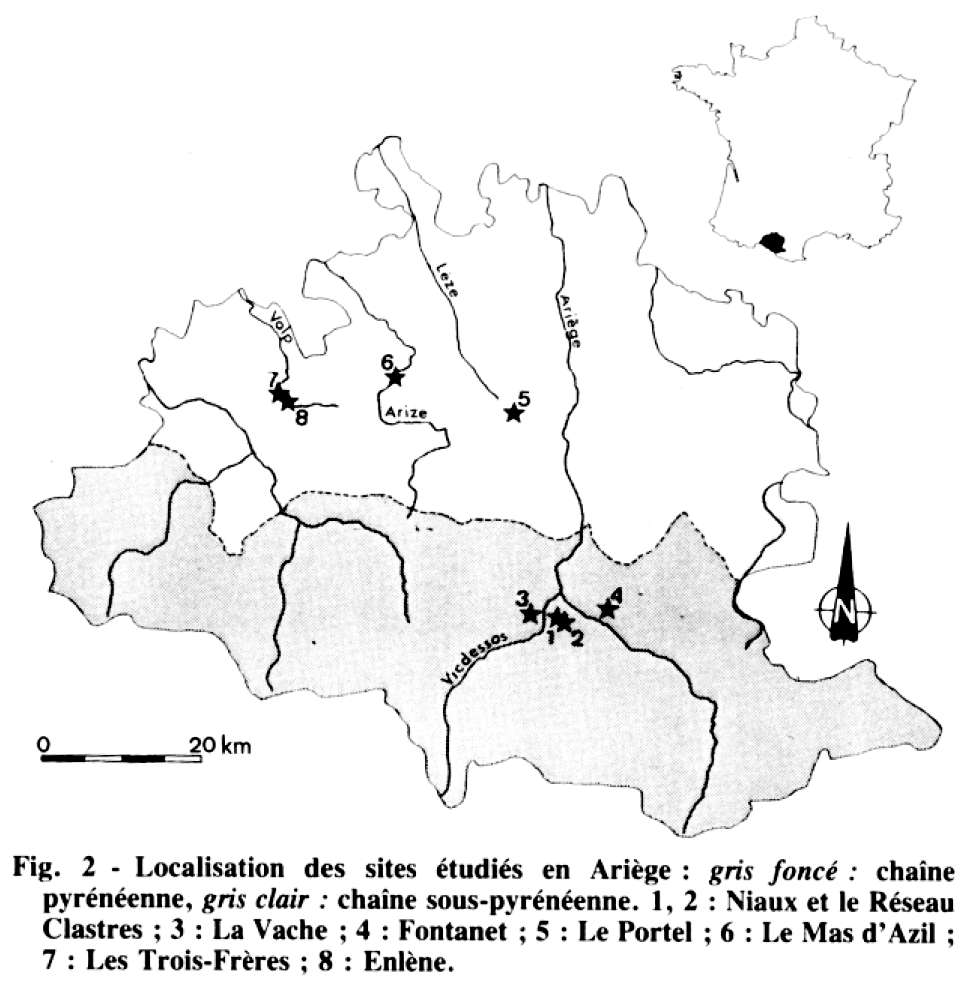

Location map for Ariège sites.

Photo: Clottes, J. et al (1990)




niaux map
Niaux map of the caves

Photo: Martinez (1973)




niaux map

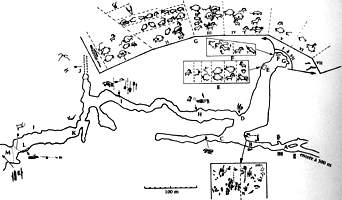

Niaux plan of the caves

Photo: Martinez (1973)

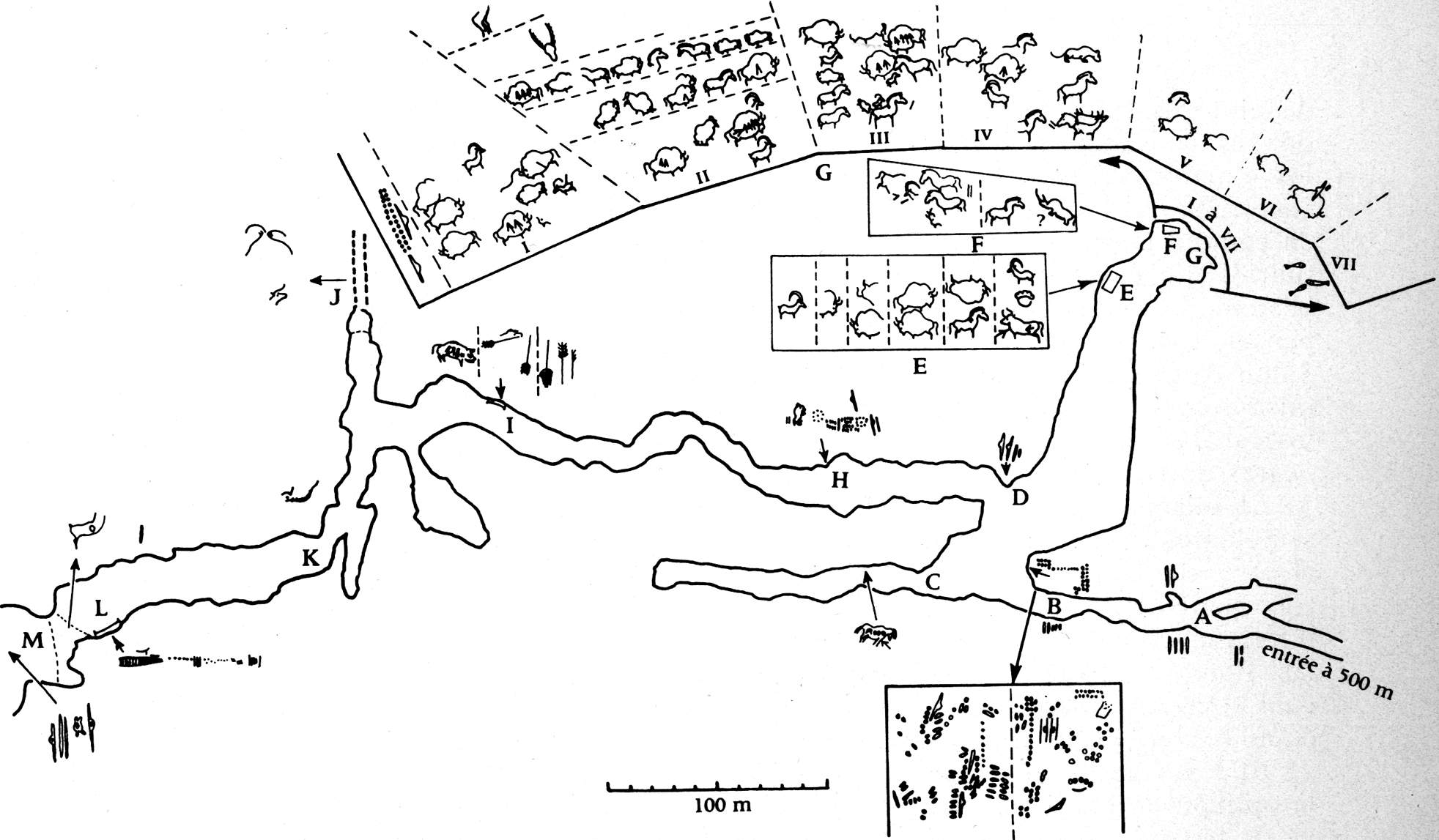

Distribution of the figures of Niaux (according to Leroi-Gourhan on the plan of Molard).

A. Lines at the entrance and connected signs in an alcove to the right.

B. Lines, a great panel of signs around the gallery, and lines formed from dots.

C. Secondary gallery with a bull engraved in the mud of the floor.

D. Lines and connected signs opposite to group B.

E. Engravings in the mud of the floor at the entrance of the Salon Noir. A combination isolated bull-goat sign and a combined bison-horse-goat.

F. Engravings in the mud of the floor of the Salon Noir. The first group includes a horse and a very problematic rhino, the second a complete composition of connected bison-horse-signs and a goat.

G. Set of panels of the Salon Noir. One should notice the connected claviformes signs at the two extremities (IV) and the regularity of presence of the fundamental subject bison-horse-goat in each panel. For alcove II the repetition of the signs in each successive plane is very clear, as the presence of the red deer and the man (?) right at the bottom. Notice also the presence of the red deer and the feline in the continuous series 1-II-III-IV and the one of the fish in the total series VII.

H. Red panel of the "dying bison": vertical bison, claviformes points, signs and lines.

I. Bison on mud with connected signs. Bearded horse and signs in red on the wall.

J. Figures beyond the "green lake". Facing goats in black, and bull.

K. Inverted head of a horse using an accident of the wall.

L. Set of the terminal lake: a malformed grid, points and lines. Goat without head or legs, marked with a red dot.

M. Beyond the terminal lake: connected signs. There are few animals, aside from those of the Réseau Clastres.



Distribución de las figuras de Niaux (según Leroi-Gourhan sobre plano de Molard).



A. Bastoncillos de entrada y signos acoplados en una alcoba a la derecha.

B. Bastoncillos, gran panel de signos a la vuelta de la galería, líneas de puntos.

C. Galería secundaria con un toro grabado en el suelo.

D. Bastoncillos y signos acoplados enfrente del grupo B.

E. Grabados en el suelo a la entrada del Salon Noir. Combinación toro-cabra-signo aislado y un conjunto bisonte-caballo-cabra.

F. Grabados en el suelo del Salon Noir. El primer grupo comprende un caballo y un rinoceronte muy problemático, el segundo una composicion completa bisonte-caballo-signos acoplados mas cabra.

G. Conjunto de los paneles del Salon Noir. A notar los signos claviformes acoplados a las dos extremidades (I-VI), la regularidad de presencia del tema fundamental bisonte-caballo-cabra en cada panel. Para la alcoba II la repetición de los signos en cada plano sucesivo es muy limpia, como la presencia del ciervo y el hombre (?) completamente al fondo. A notar igualmente la presencia del ciervo y del felino al fin de la serie continua 1-II-III-IV y la de los peces al fin de la serie total VII.

H. Panel rojo del «bisonte moribundo»: bisonte vertical, puntos, signos claviformes y bastoncillos.

I. Bisonte sobre barro con signos acoplados. Caballo y signos barbados en rojo sobre pared.

J. Figuras más allá del «lago verde». Cabras afrontadas y toro, pintadas en negro.

K. Cabeza de caballo invertida utilizando un accidente de la pared.

L. Conjunto del lago terminal: signo enrejado aberrante, puntos y bastoncillos. Cabra sin cabeza ni patas anteriores, marcado con un punto rojo.

M. Más allá del lago terminal: signos acoplados.

Faltan muchos animales, aparte de los del Réseau Clastres. El texto antecedente es traducción del pie de la figura de Leroi-Gourhan.

macizo de la calbiere
Macizo de la Calbière - the valley wall to which Niaux Cave opens.

Photo: Martinez (1973)




References

  1. Martinez, A. , 1973: La cueva de Niaux (Monografias arqueologicas), Departamento de Prehistoria y Arqueologia, Fac. Letras
  2. Clottes, J., Menu M., Walter Ph. , 1990: La préparation des peintures magdaléniennes des cavernes ariégeoises. Bulletin de la Société préhistorique française. 1990, tome 87, N. 6. pp. 170-192.
