The Oberkassel Double Burial


In 1914 stone quarry workers in Bonn-Oberkassel discovered two human skeletons, bones from a dog, and two works of art made of bones and antlers. The combination of a double burial for humans and art and one of the oldest domestic dogs in the world, unique in Central Europe of around 14 000 years ago, makes this ensemble of findings one of the most important sources for the late Ice Age.

A subsequent excavation by the LVR-Amt für Bodendenkmalpflege im Rheinland (Rhineland Authority for Archaeological Monuments and Situes) led by Ralf W. Schmitz and Jürgen Thissen in 1994, yielded a more precise localisation of the site of the findings and a more recent dating than had been previously assumed. There are plans to subject the Oberkassel grave findings to a completely new scientific examination. Currently, 30 scientists from extremely diverse fields are participating in this multidisciplinary project.
Text above: http://www.landesmuseum-bonn.lvr.de/en/forschung/projekte/oberkassel/oberkassel_1.html



oberkassel

The habitat of the 'people from Upper Kassel': the Rhine Valley 14 000 years ago graphically reconstructed.

Artwork: © Dario Koch
Photo: Michael Hesse   Source: Display, LVR-LandesMuseum Bonn, exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)



man woman dog spearthrower
Ice Age hunters with a dog - our direct ancestors?

Burial at Bonn-Oberkassel, 14 000 years BP.

In 1914, the double burial of a man and a woman was found in the quarry on the Oberkasseler Rabenlay, where a dog and art objects made of bones had been put into the grave. This double grave is the only one of its kind in Central Europe and the most significant find of the late Palaeolithic in Germany. Artist: © Karol Schauer
Source and text: http://www.bodendenkmalpflege.lvr.de/de/aktuelles/veranstaltungen/eiszeitjaeger.html#!prettyPhoto
Additional text: Display, LVR-LandesMuseum Bonn, for the exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)






oberkassel

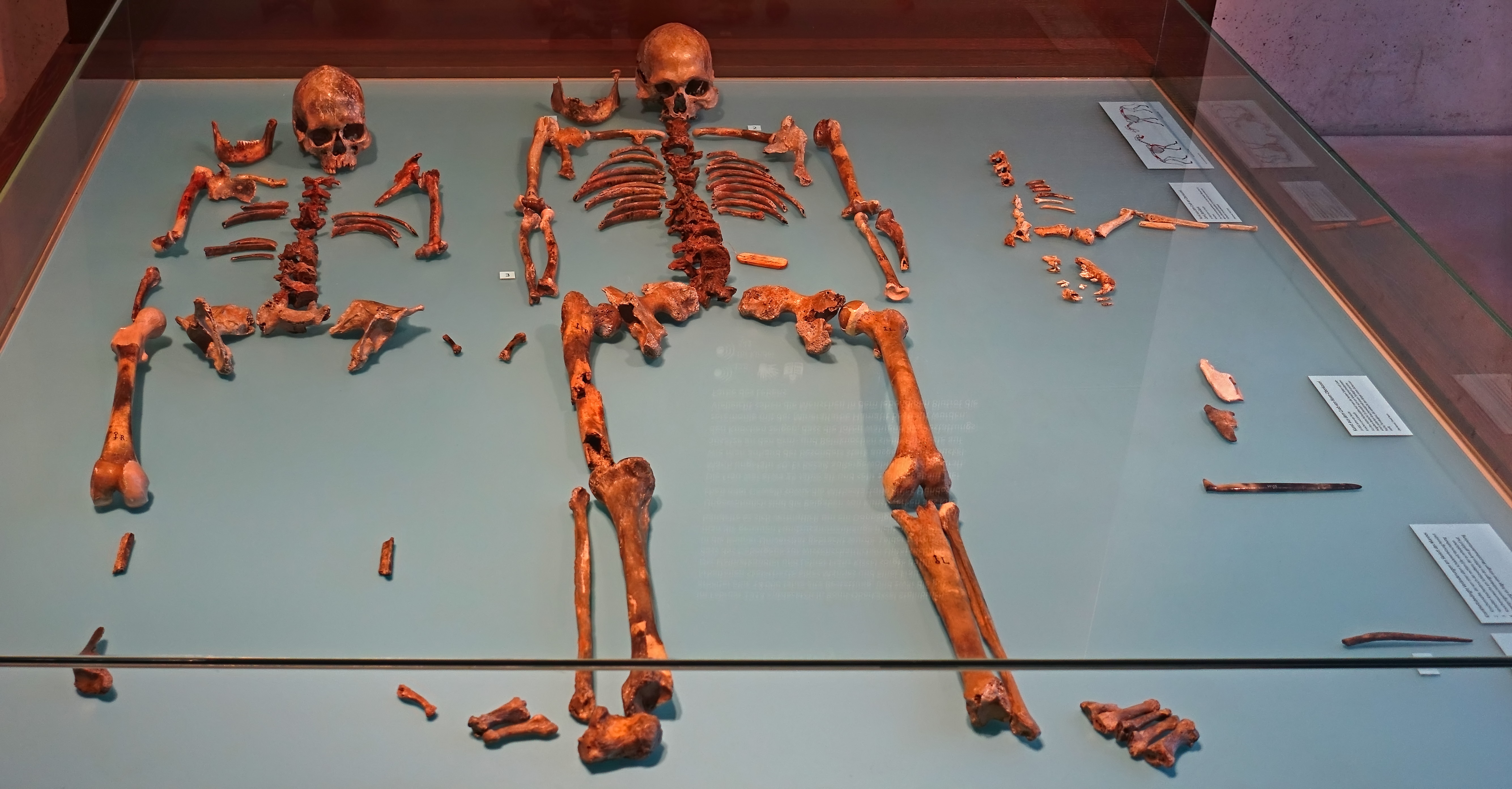

Female skeleton on the left, male skeleton in the middle, bones of the dog on the right, Canis lupus familiaris.

Photo: Don Hitchcock 2018
Source: Display, LVR-LandesMuseum Bonn, for the exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)




oberkassel
Close up of the upper parts of the human skeletons.

The individual skeletons were radiocarbon dated to 11 570 ± 100 and 12 180 ± 100 BP (14 020 and 13 430 cal BP respectively).

Photo: Don Hitchcock 2018
Source: Display, LVR-LandesMuseum Bonn, for the exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)
Source for dating: Qiaomei et al. (2013)




oberkassel

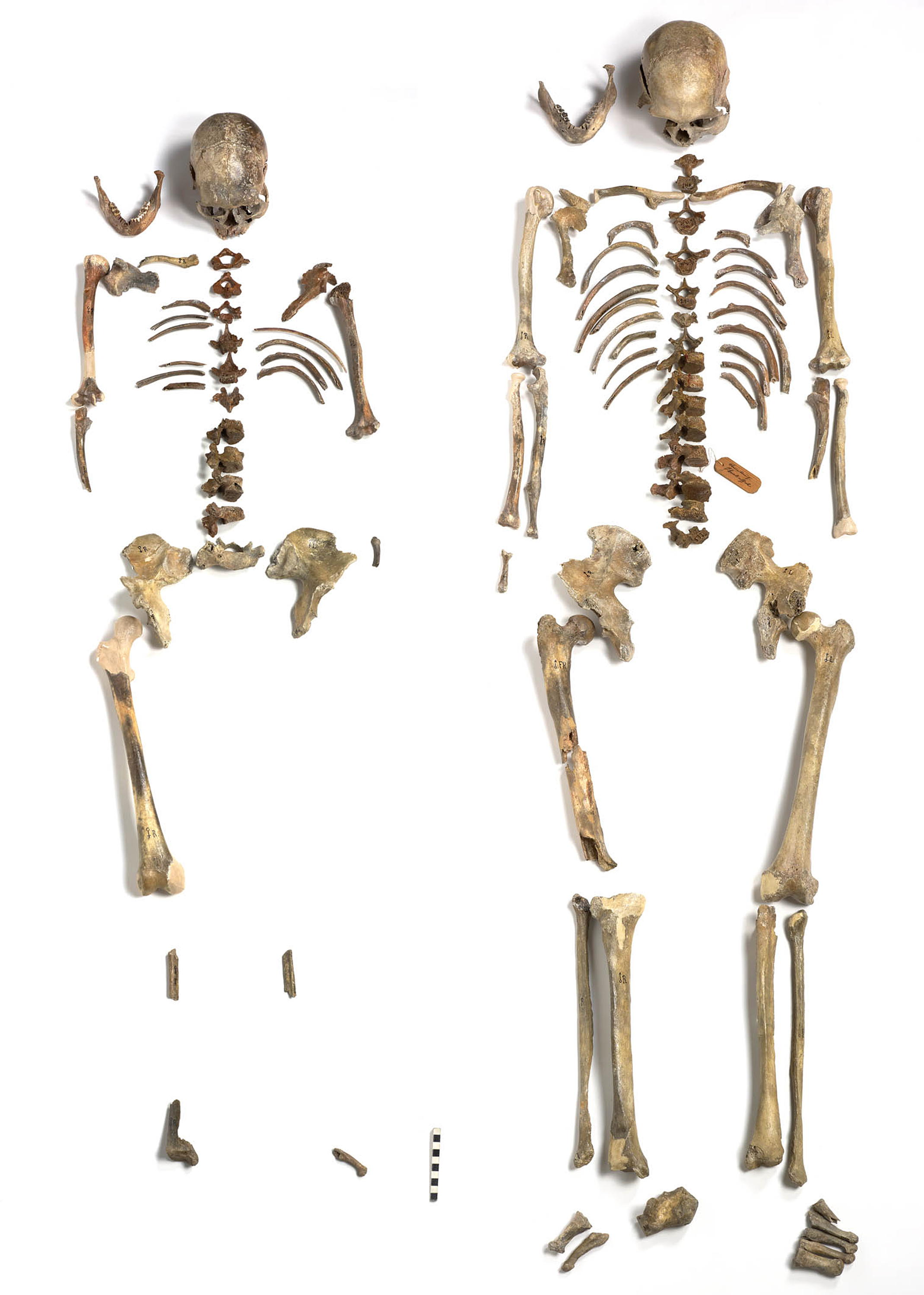

The two human skeletons from above.

Photo: © Jürgen Vogel/LVR-LandesMuseum Bonn
Source: http://www3.uni-bonn.de/




man woman

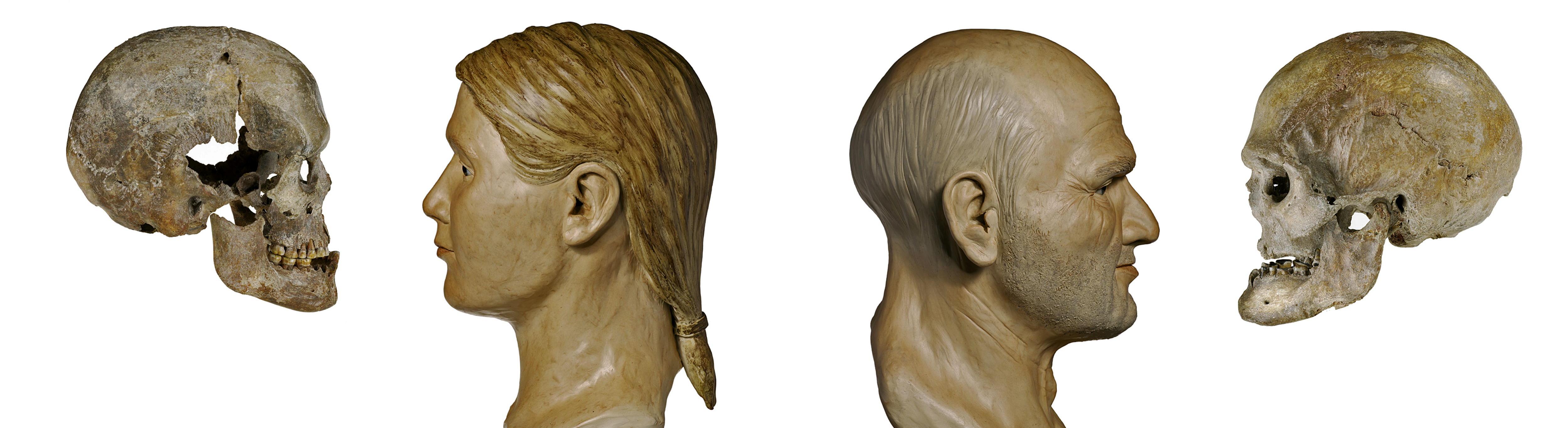

Using methods of forensic medicine the two skulls from Oberkassel were given faces.

Source and text: http://www.bodendenkmalpflege.lvr.de/de/aktuelles/veranstaltungen/eiszeitjaeger.html#!prettyPhoto



oberkassel

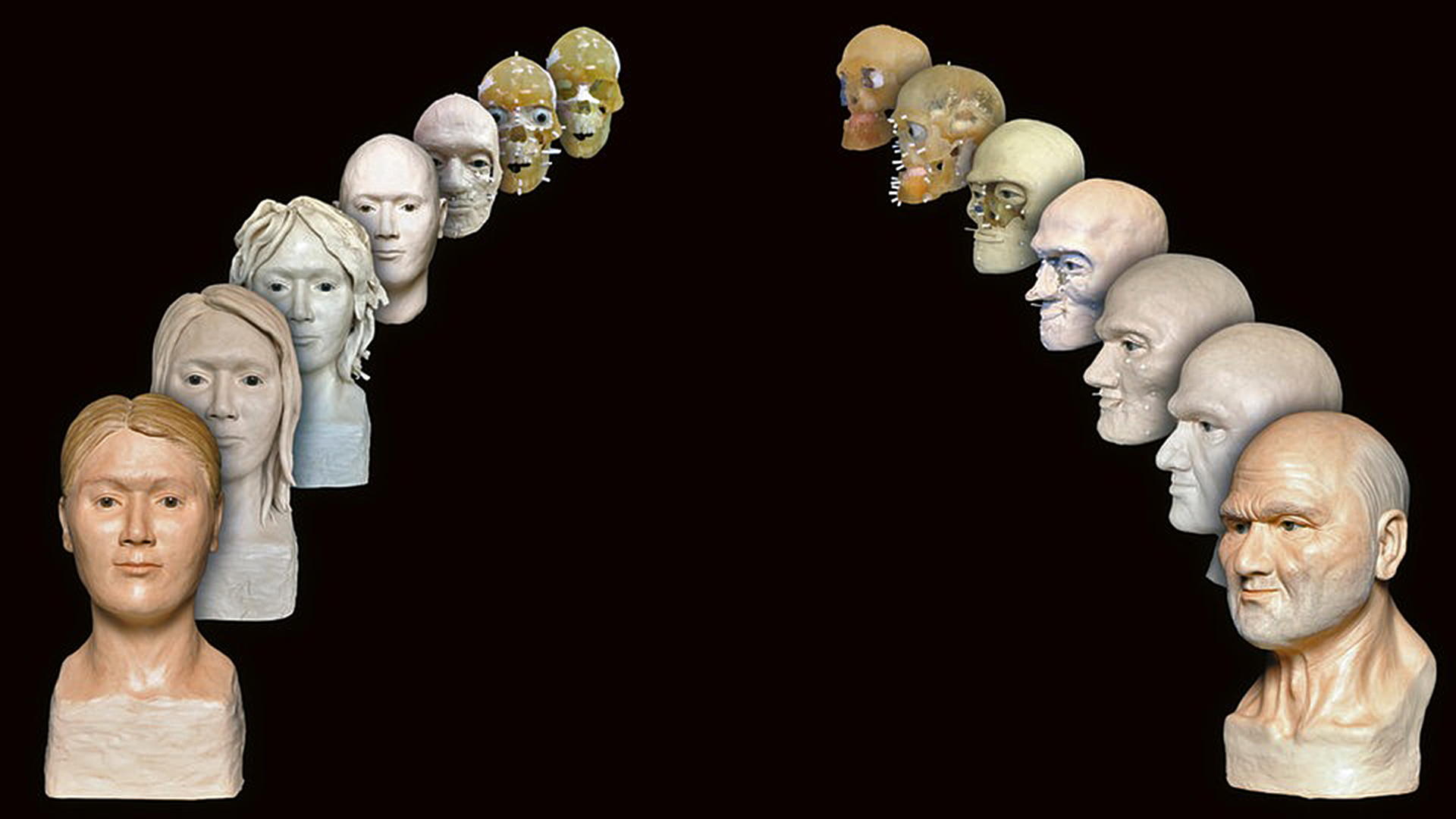

Creation of the models.

Photo: © Constanze Nies
Source: http://www.wdr5.de/sendungen/scala/eiszeitjaeger130.html




oberkassel oberkassel

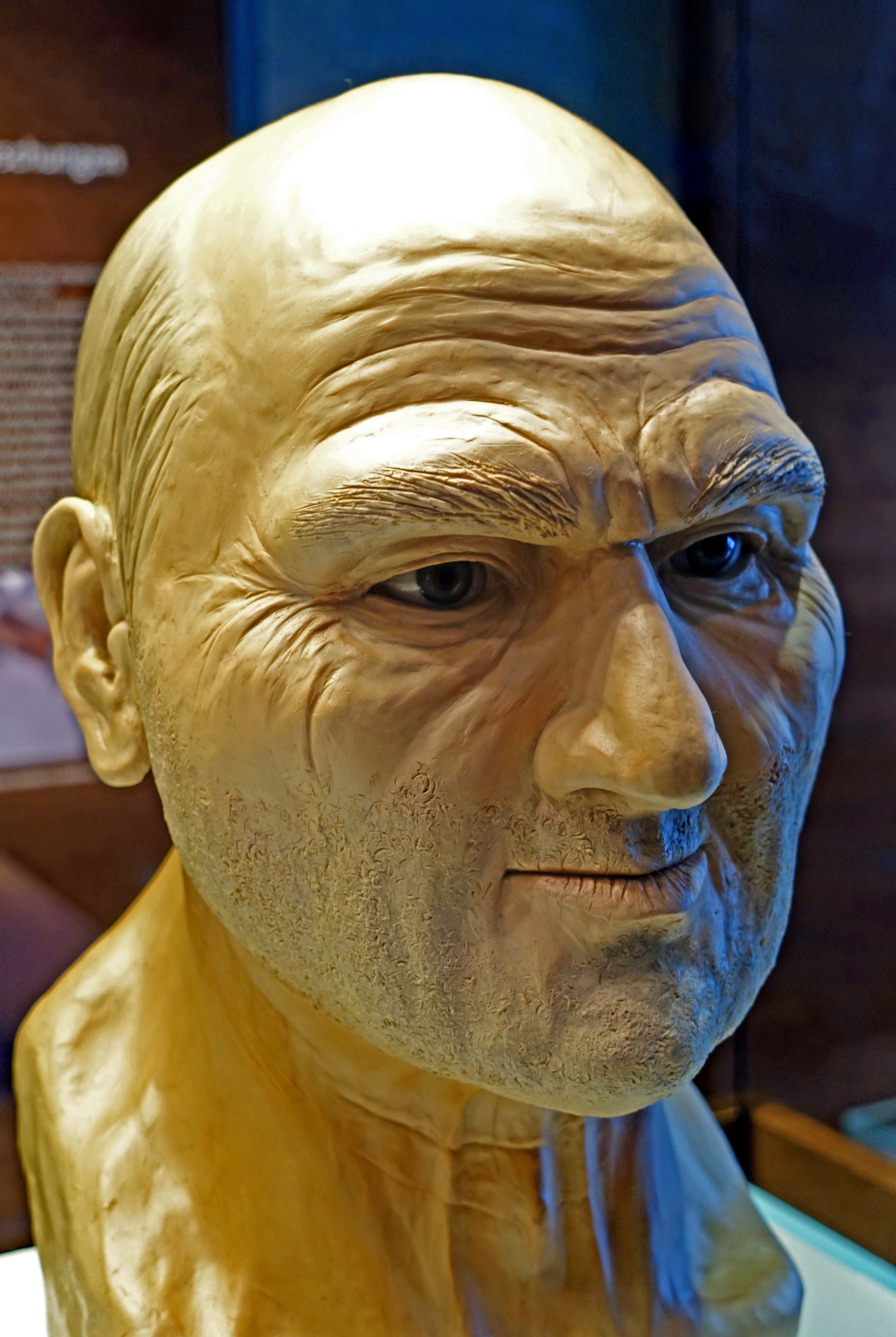

Models.

Photo: Don Hitchcock 2018
Source: Display, LVR-LandesMuseum Bonn, for the exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)




oberkassel facial reconstruction.
Individual steps from the exact replica of the skull to the final molded facial reconstruction.

The white rubber markers that indicate the thickness of the soft tissue are visible as white cylinders, in particular on the second image from the top. The soft tissue is made of modelling clay.

Photo: © Constanze Nies
Rephotographed: Michael Hesse
Source: Bosinski (2014), fig. 10, p. 226




oberkassel

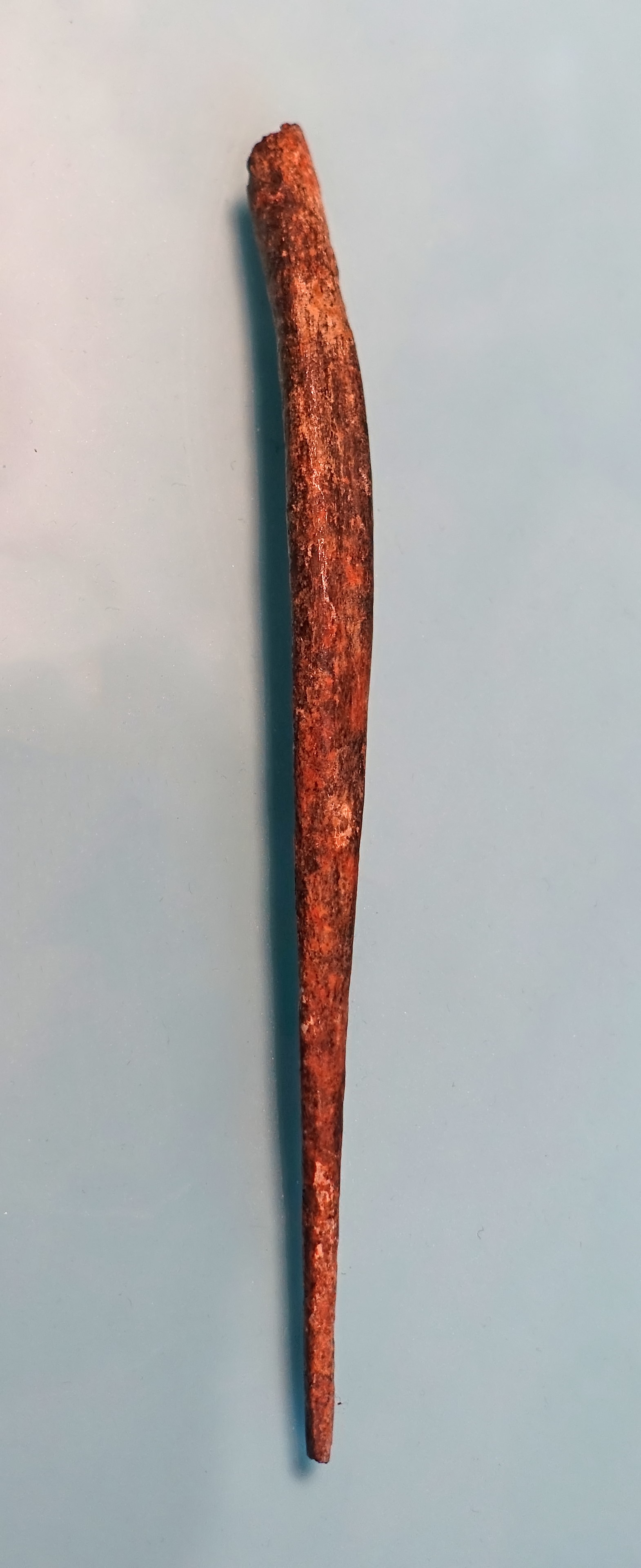

There were a number of artefacts included in the burial, including this penile bone of a brown bear with haematite (a pure form of red ochre) superimposed on cut marks.

Photo and additional text: Don Hitchcock 2018
Source and text: Display, LVR-LandesMuseum Bonn, for the exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)
Source for dating: Qiaomei et al. (2013)

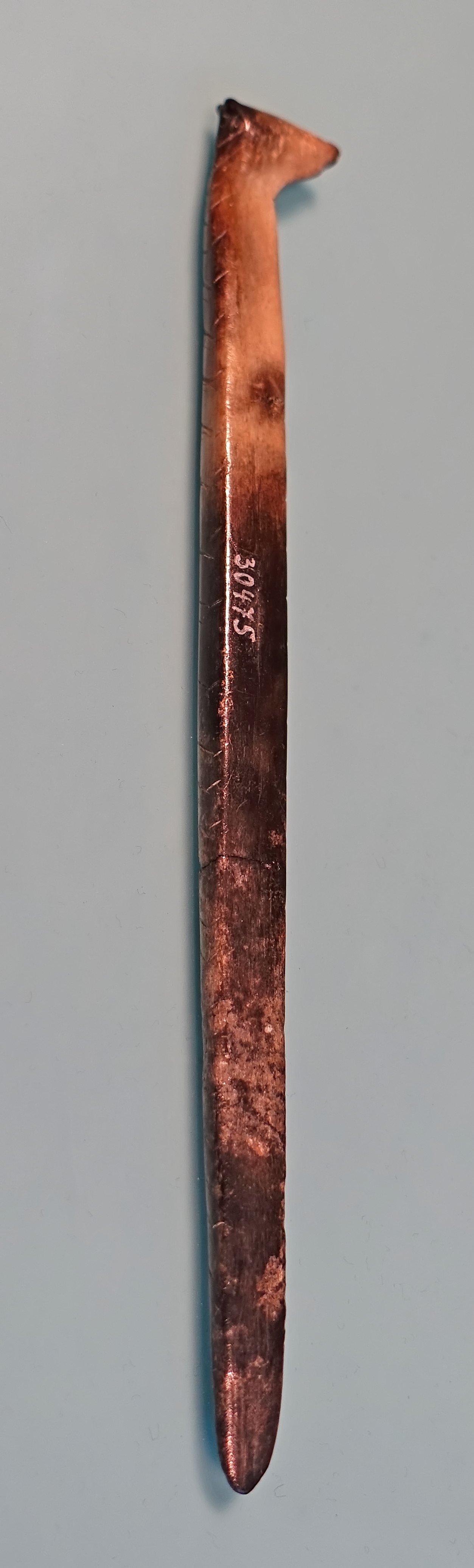

oberkassel oberkassel
Hairpin. Length 190 mm, 12 mm wide, and 7 mm thick, polished by frequent use of its owner. The pin was manufactured from a long, hollow bone, the head still shows residues of the spongiosa.

The rectangular cross-section has rounded edges along the length. Along the length are chevron-shaped pairs of marks, arranged in an orderly fashion in a sequence. One side has the tip of the chevron pointing to the head, the back side has them pointing in the opposite direction. The lower part of the stick shows scars and fine diagonal hatching indicating a short period of use for a different purpose, probably to retouch flint surfaces.

The fact that the pin was found near the skull of the woman gave rise to the interpretation as a hairpin, the frequent use of it resulted in the durable polish.

Photo: Don Hitchcock 2018
Text: Bosinski (2014)
Source: Display, LVR-LandesMuseum Bonn, for the exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)

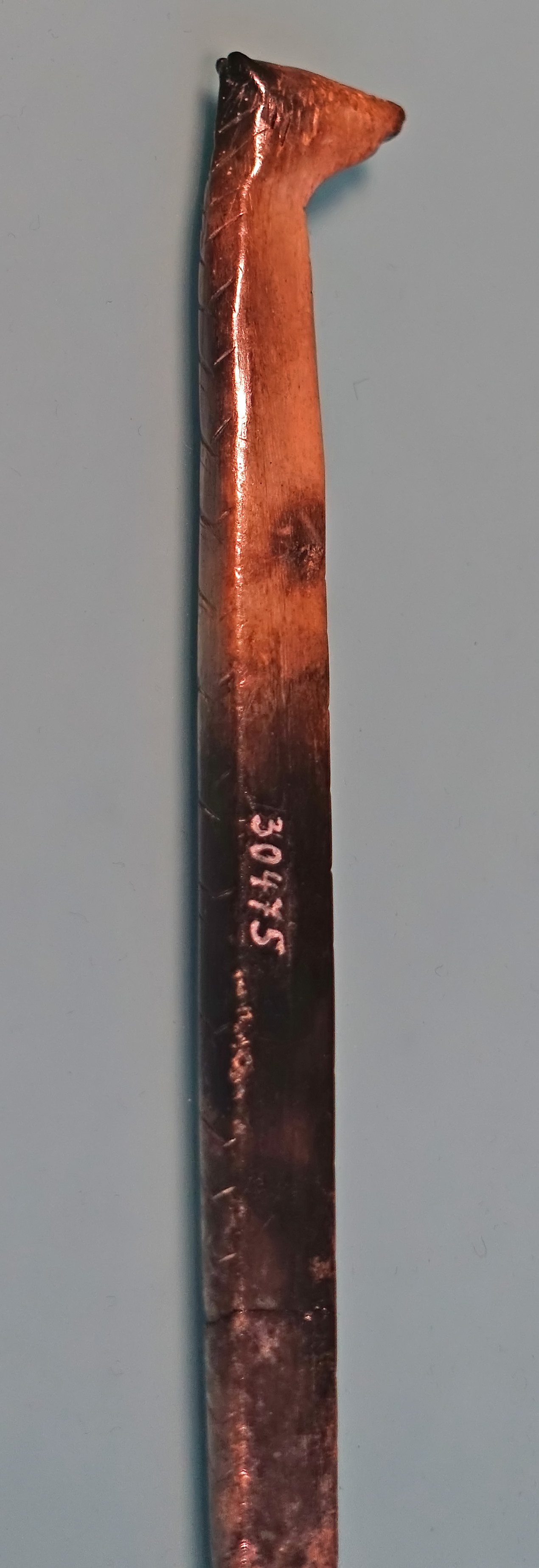

oberkassel hair pin

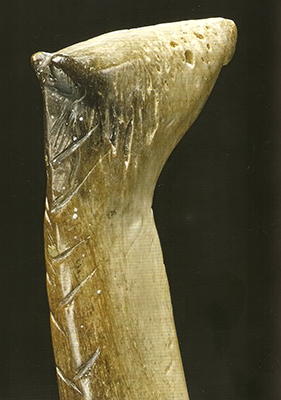

Details of the head of the 'hairpin'. The chevrons are oriented tip-down on the back and tip-up on the front. The head shows an elongated snout over a short lower jaw. The ears are round (probably shaped by frequent use) and short. The chevrons on the neck resemble a mane.

The head is carved from spongiform bone and shows a very durable polish. The head is interpreted as that of a horse or a marten, while the triangular shape could also indicate the head of an elk or a deer.

Source and text: Bosinski (2014)




oberkassel

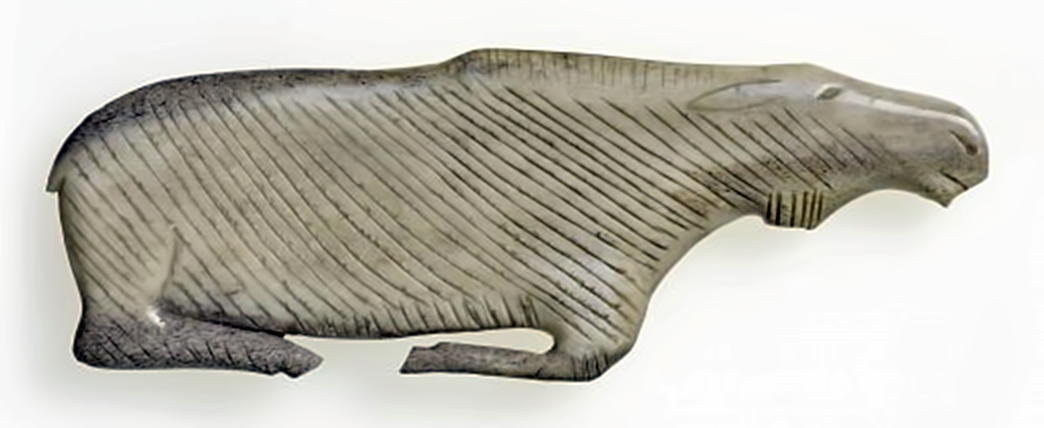

Elk (moose) sculpture.

The animal figure was originally nearly complete. However, a quarter of it was lost during its recovery from the site in 1914 by quarry workers. Nevertheless it was clearly identified as an animal sculpture.

The diagonal carvings appear to indicate hide with diverse long and dense hair. All characteristics point to a member of the class of cervides, most probably an elk as a contour découpé, a flat sculpture worked on both sides, a characteristic style of the Magdalenien IV (Southern France chronology). Recent absolute dating, however, attributes the site to the late ice age 'feather-knife' group, ~14 000 BP.


The Federmesser culture or Federmesser group is a toolmaking tradition of the late Upper Palaeolithic era, of the Northern European Plain from Poland (where the culture is called Tarnowian and Witowian) to northern France and Britain, dating to between 14 000 and 12 800 years ago. It is closely related to the Tjongerian culture, as both have been suggested as being part of the more generalised Azilian culture. It used small backed flint blades, from which its name derives (Federmesser is German for 'feather knife', or pen knife), and shares characteristics with the Creswellian culture in Britain.

Photo: http://www.wdr3.de/
Text: Bosinski (2014)
Additional text: Wikipedia

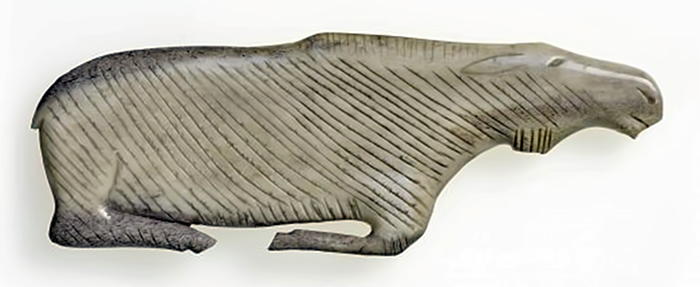

oberkassel
A recreation of the elk (moose) sculpture.

Photo: http://blog.bonn-region.de/kultur/ausstellungstipps-bonn-region




oberkassel elk sculpture

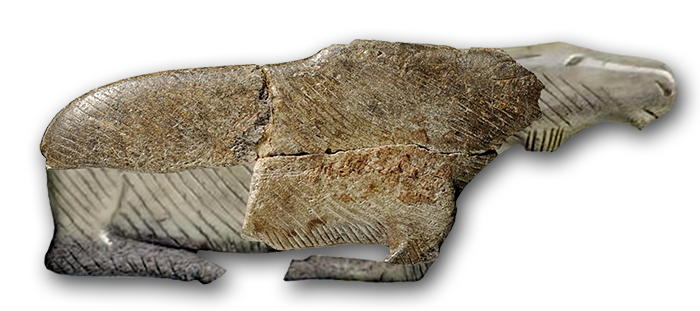

Elk sculpture original combined with facsimile.

Photo compilation: Don Hitchcock
Sources: http://blog.bonn-region.de/kultur/ausstellungstipps-bonn-region, http://www.wdr3.de/




oberkassel

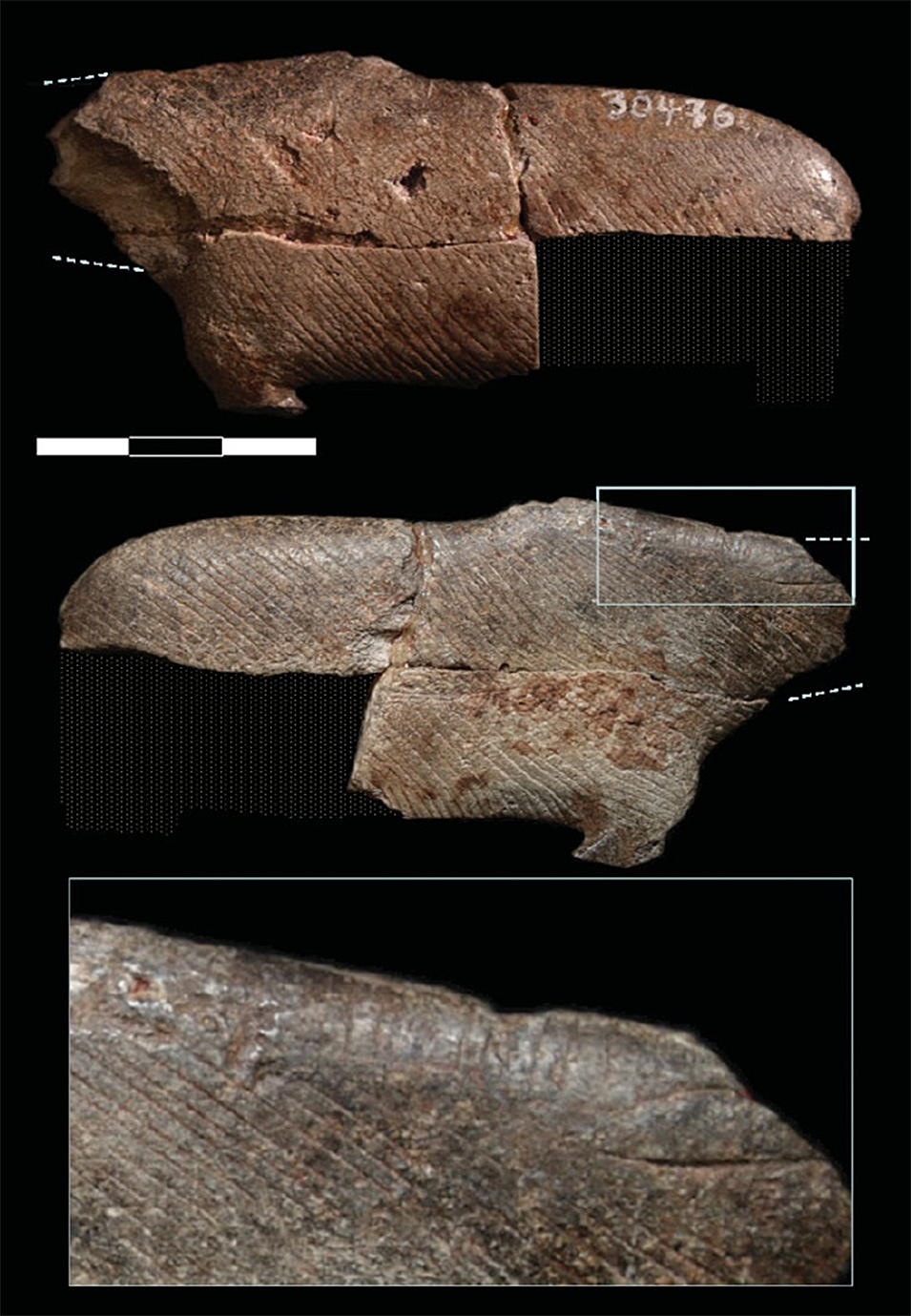

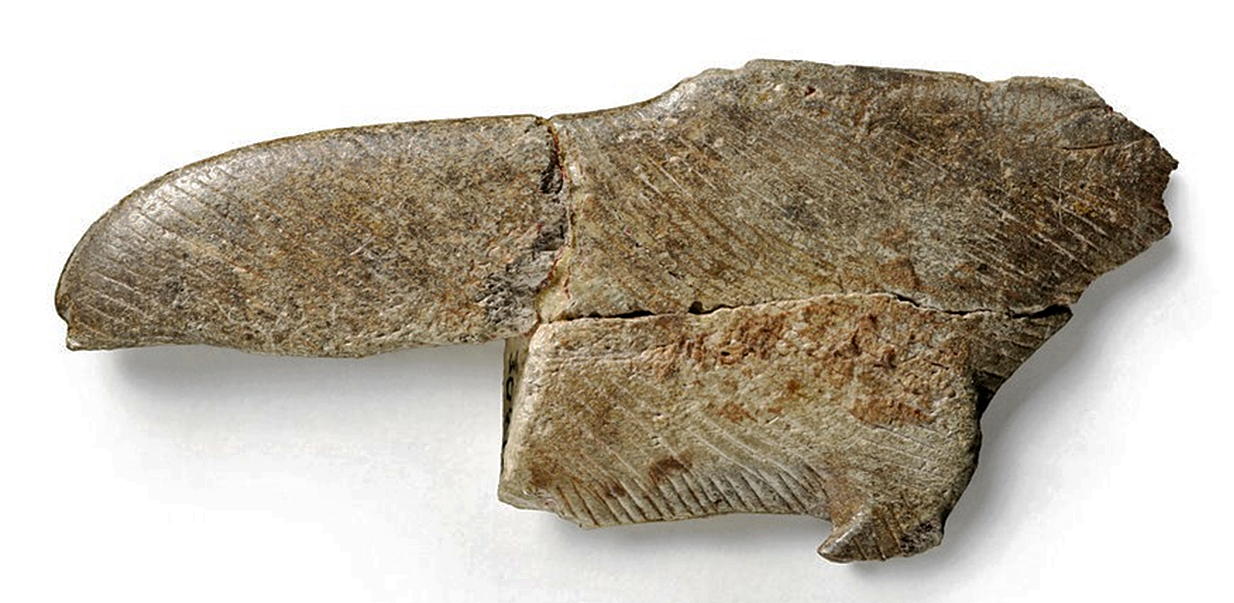

Probable elk sculpture of antler from Oberkassel, Germany.

The front and back of the piece display engraved hatching and the detail of the mane shows short engraved bars perpendicular to the edge.

Photo: Frank Willer, LVR–Landesmuseum Bonn
Photo compilation, source and text: Veil et al. (2012)

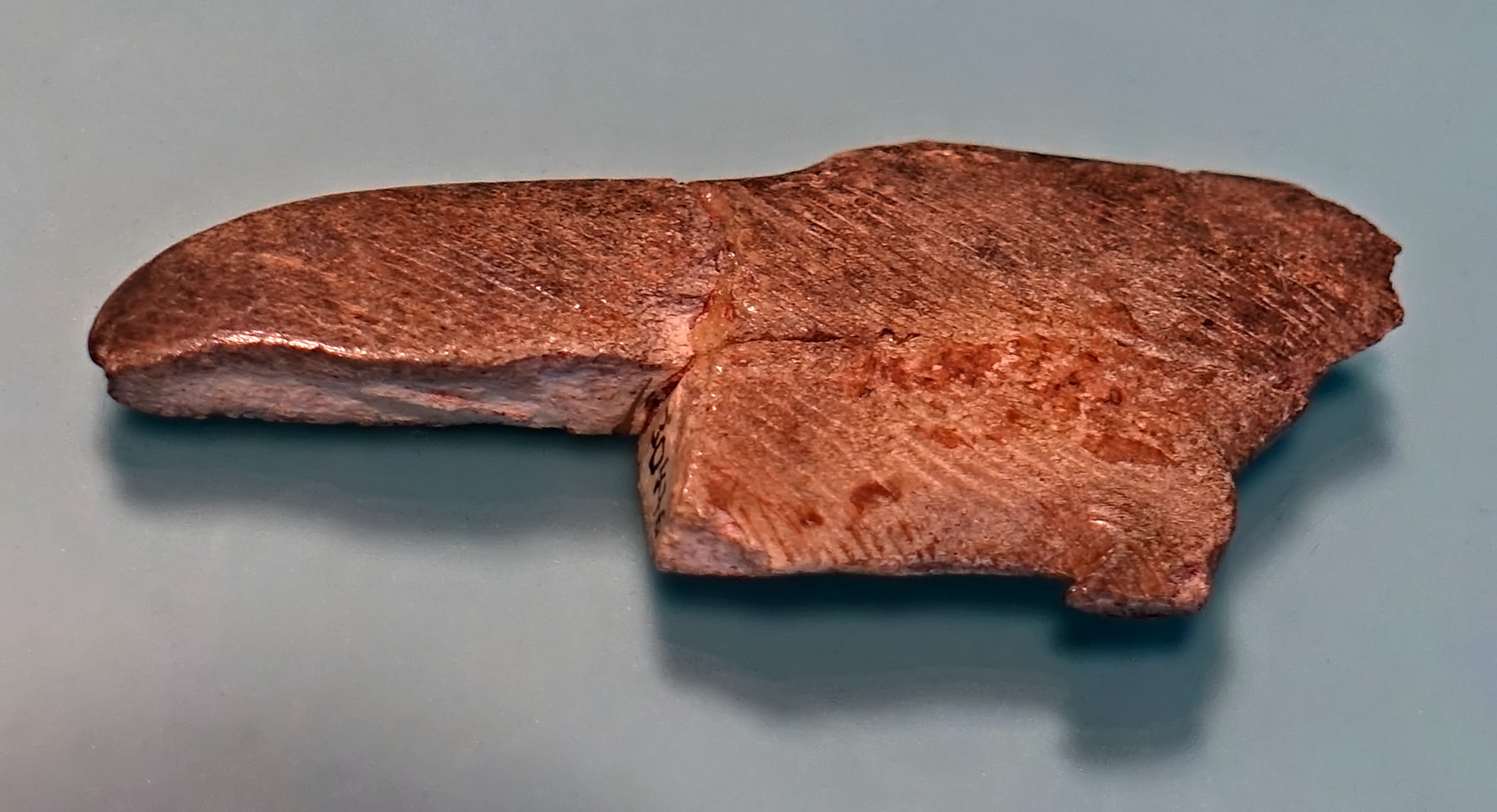

oberkassel elk sculpture. oberkassel elk sculpture.

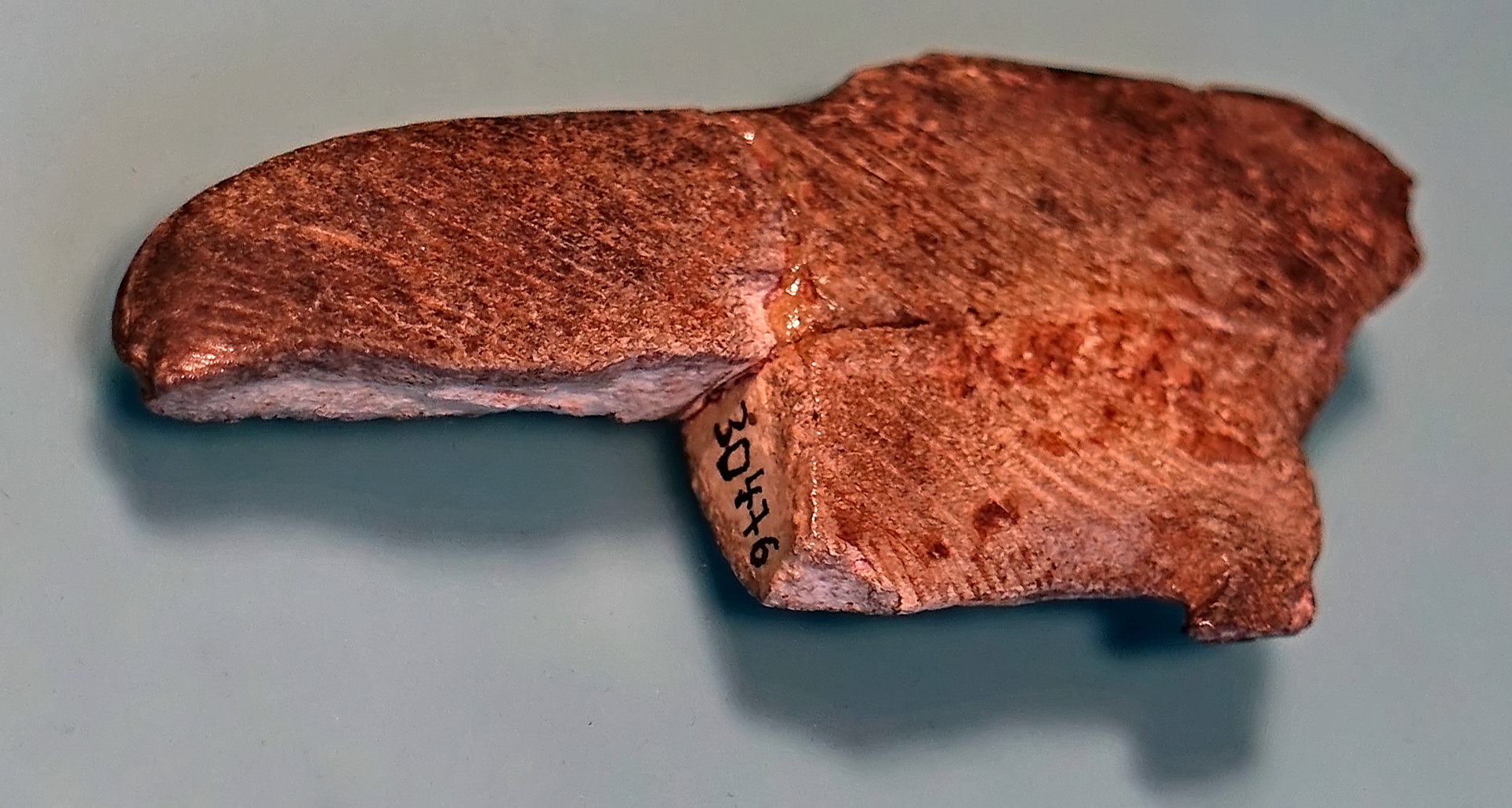

Elk (moose) sculpture, original.

Photo: Don Hitchcock 2018
Source: Display, LVR-LandesMuseum Bonn, for the exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)




oberkassel facial reconstruction.
Artist's impression of the couple from Oberkassel. The bow corresponds to the Holmegaard type. An arrow head was found, too. It carries signs of use and retouches, even traces of birch pitch that was frequently used to fix flint stone to a wooden, bone or other support for knives, arrows or spears. The dog is an already domesticated companion of man, Canis lupus familiaris.

Artist: Unknown
Text: Michael Hesse
Source: Bosinski (2014), book cover, back




oberkassel

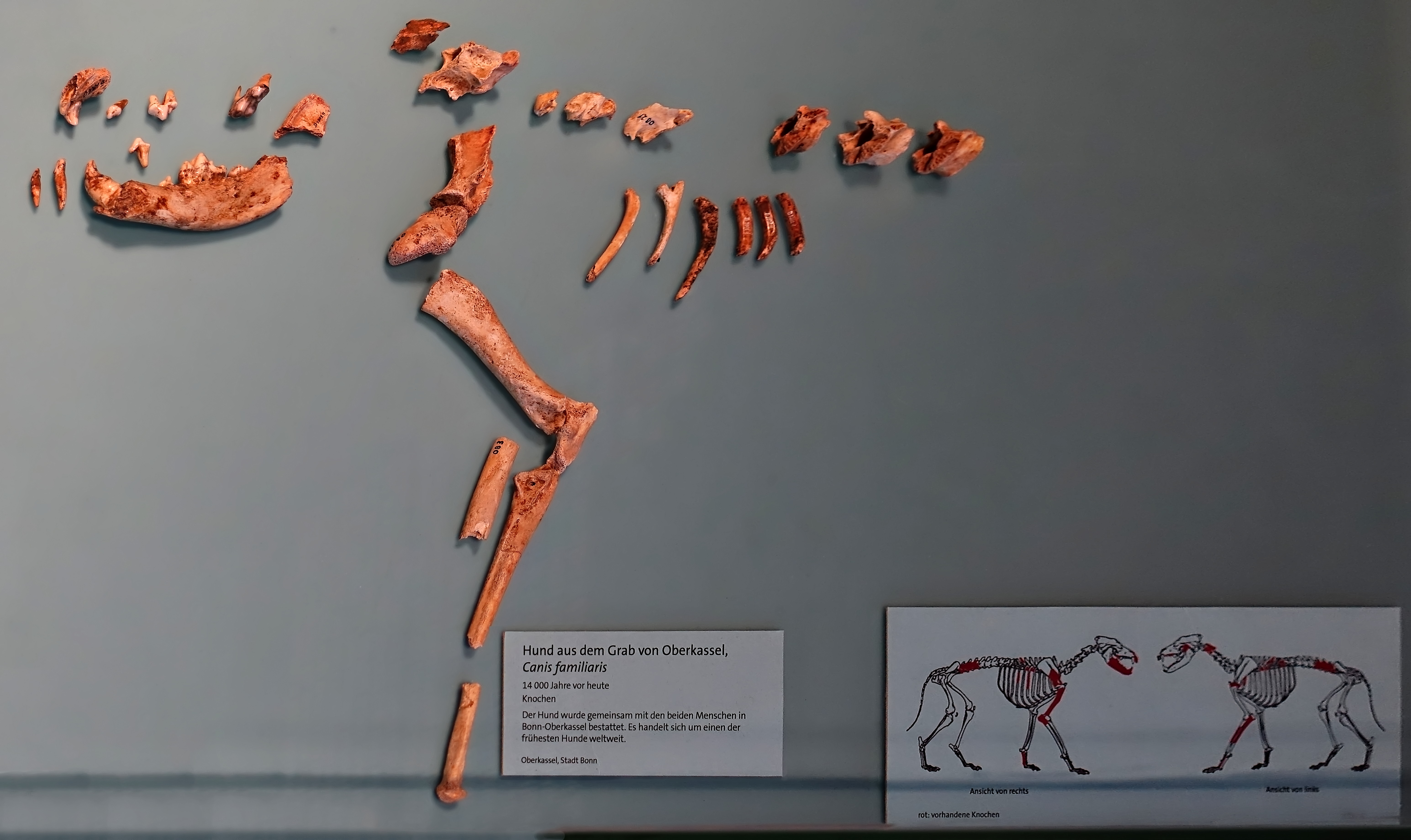

Skeleton of the dog buried with the two humans.

Photo: Don Hitchcock 2018
Source: Display, LVR-LandesMuseum Bonn, for the exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)




oberkassel dog

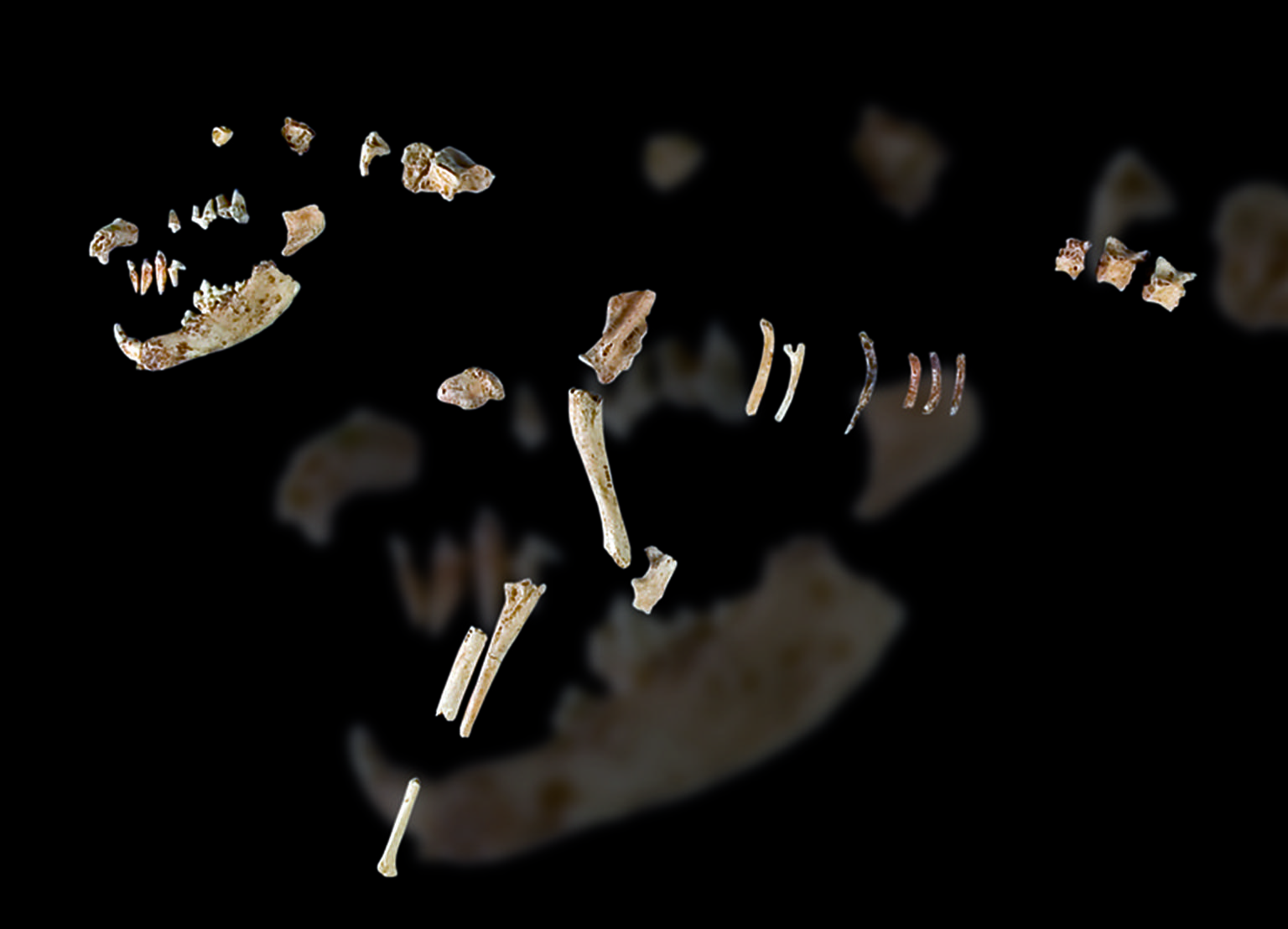

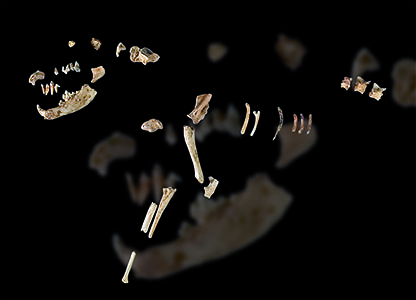

Bones of the dog found with the two human skeletons.

Genetic analysis has shown that the animal was a direct ancestor of today's dogs.

Photo: © Jürgen Vogel/LVR-LandesMuseum Bonn
Source: http://www3.uni-bonn.de/Pressemitteilungen/268-2013




oberkassel

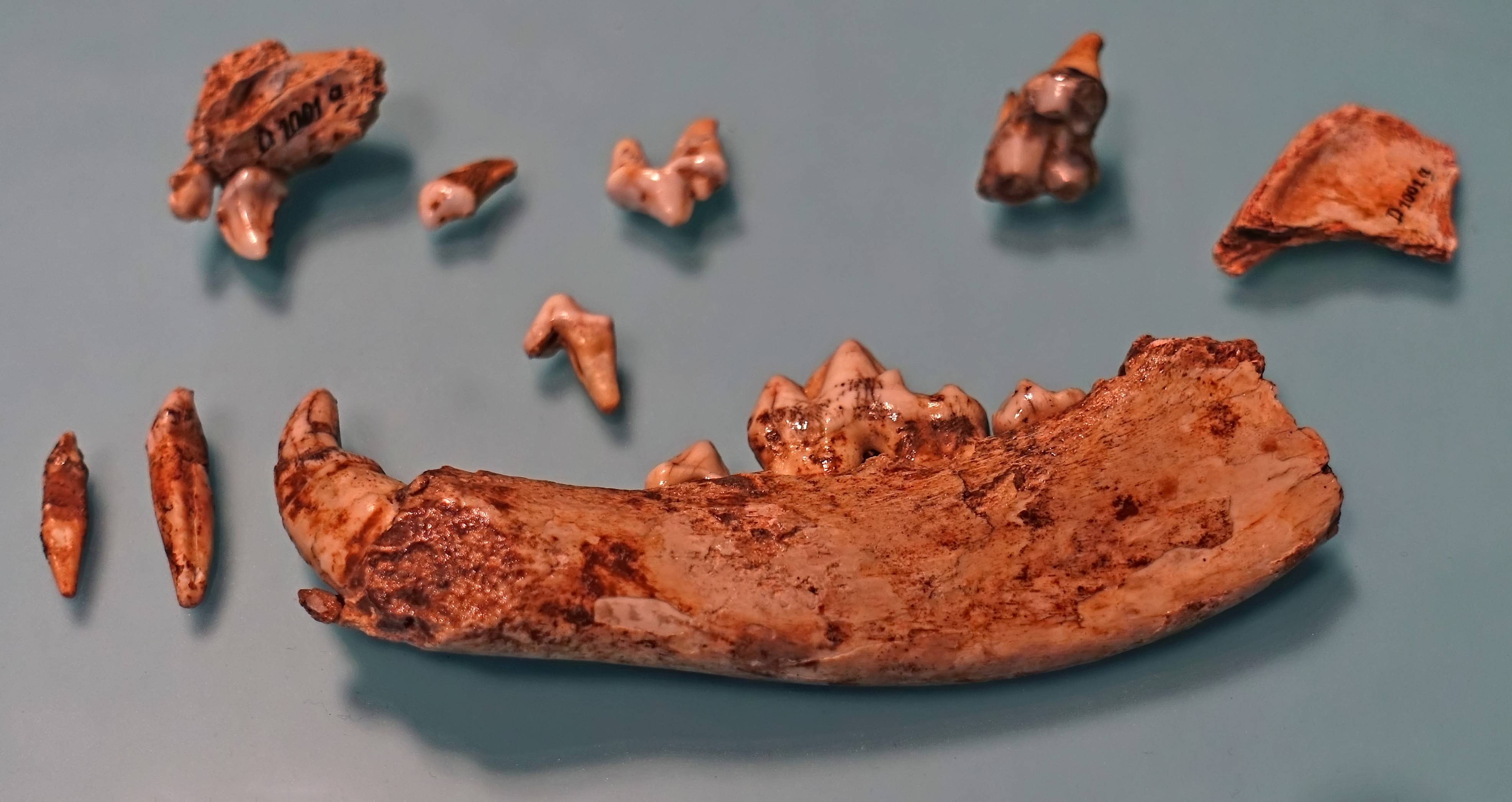

Mandible (jaw) and teeth of the dog buried with the two humans.

Photo: Don Hitchcock 2018
Source: Display, LVR-LandesMuseum Bonn, for the exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)




oberkassel

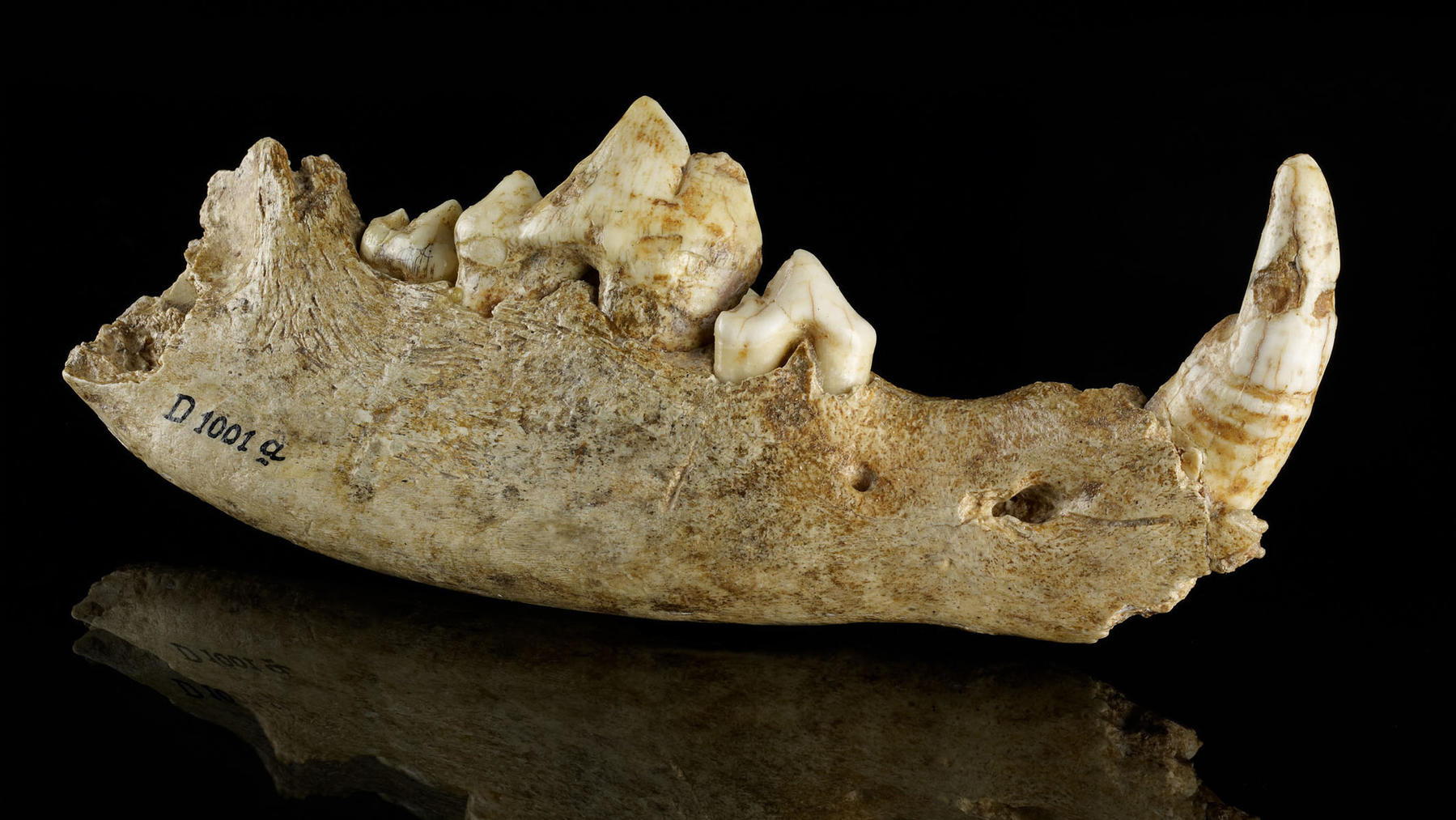

Mandible of the dog found with the two human skeletons.

Photo: http://www.latimes.com/science/sciencenow/la-sci-sn-dogs-domesticated-in-europe-photos-2-003-photo.html#lightbox=78183680




oberkassel


oberkassel

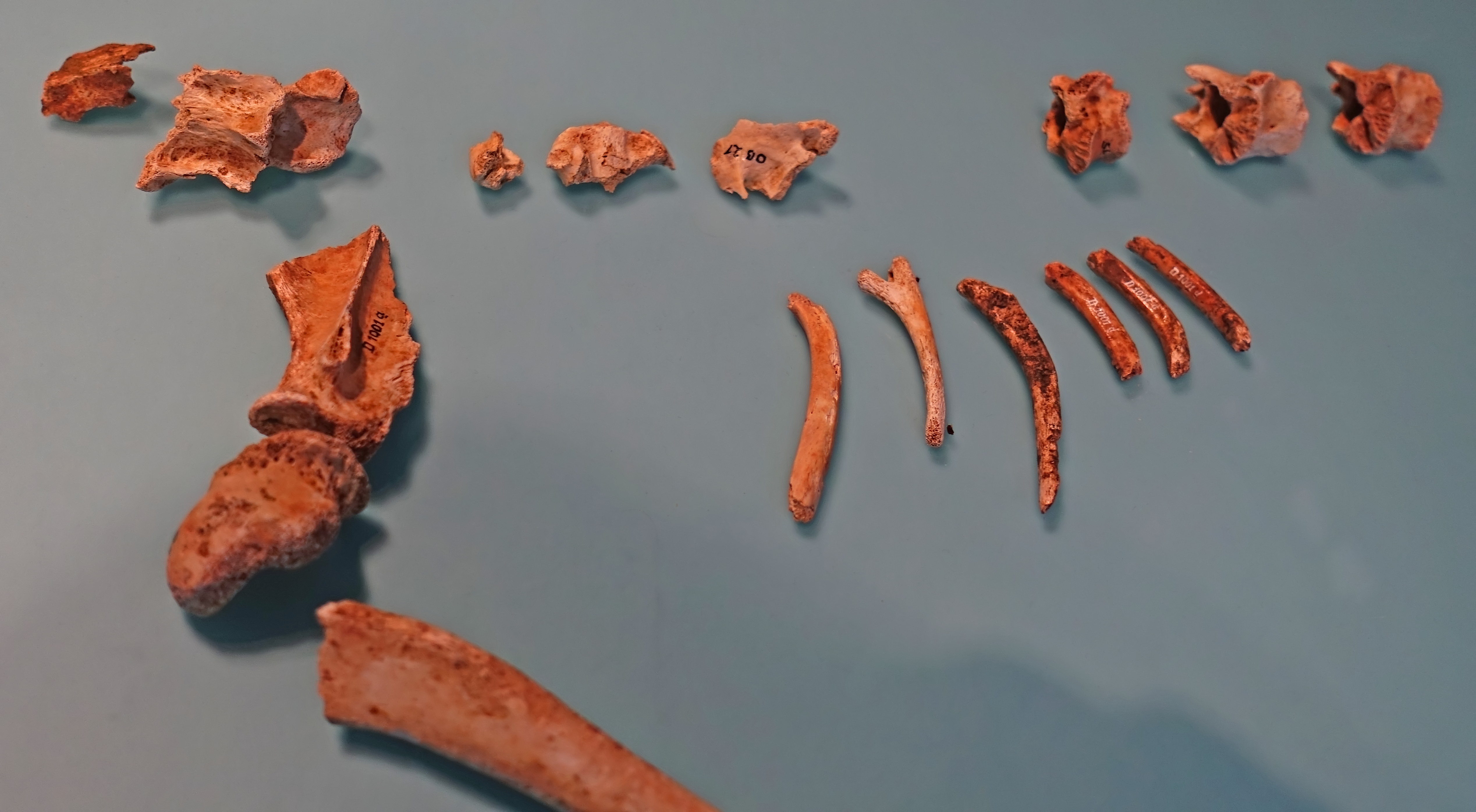

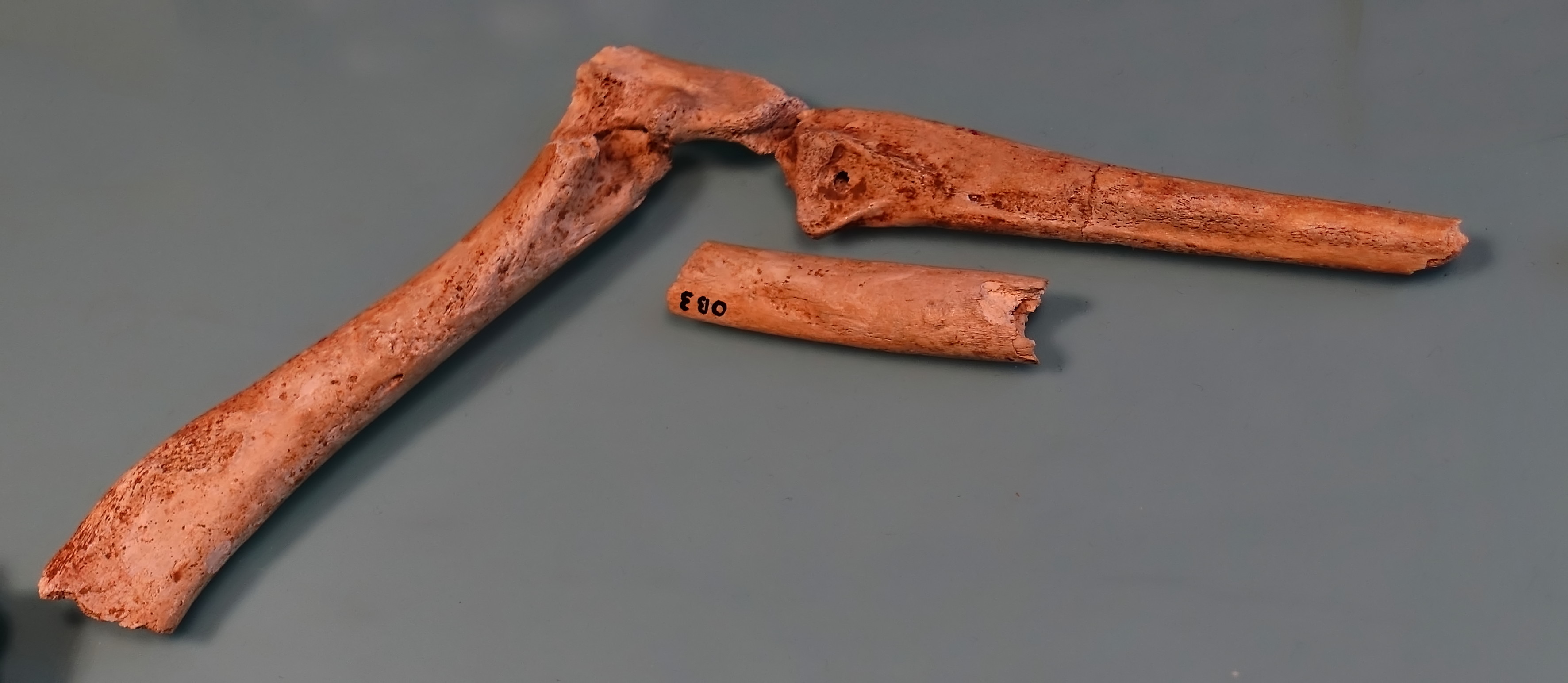

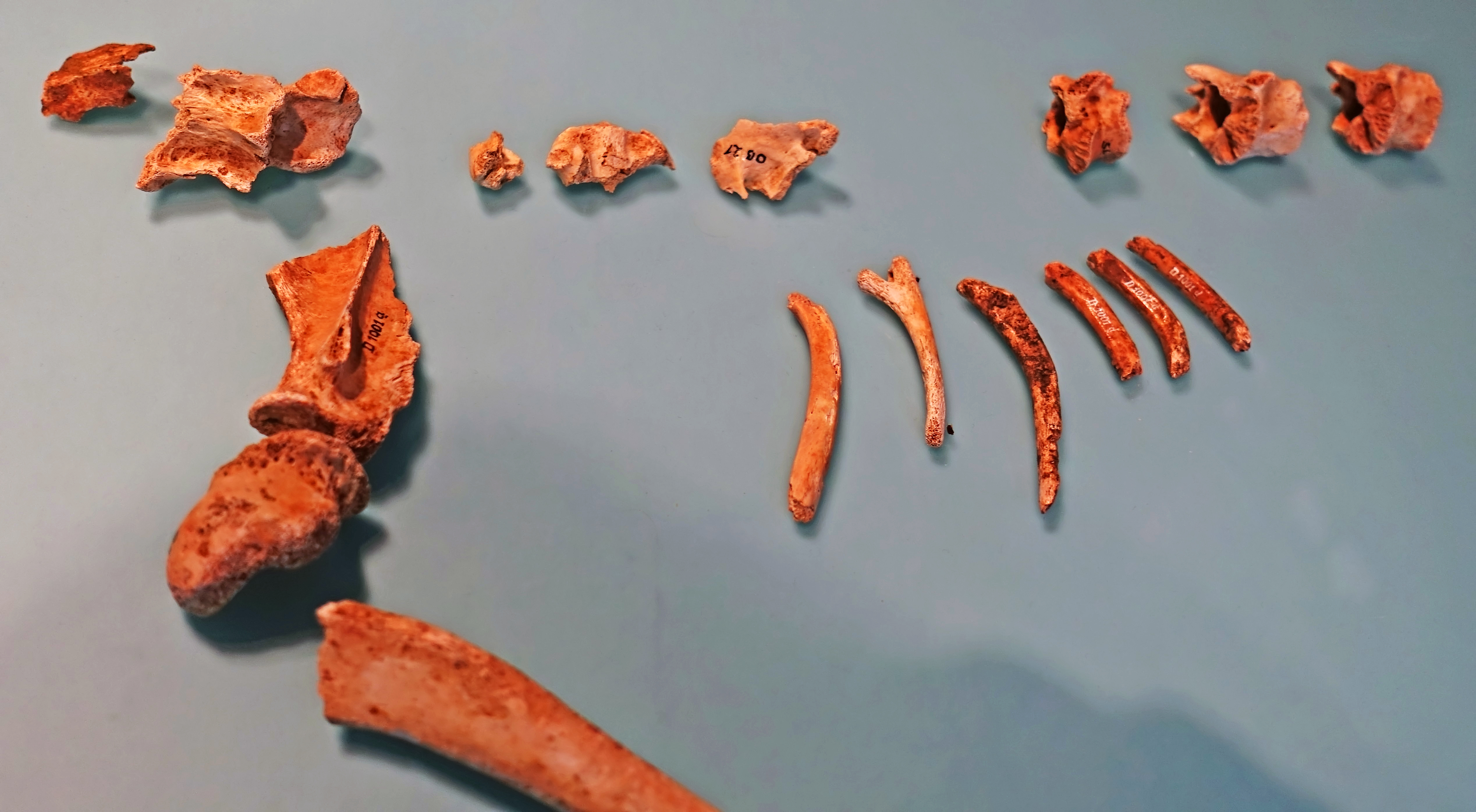

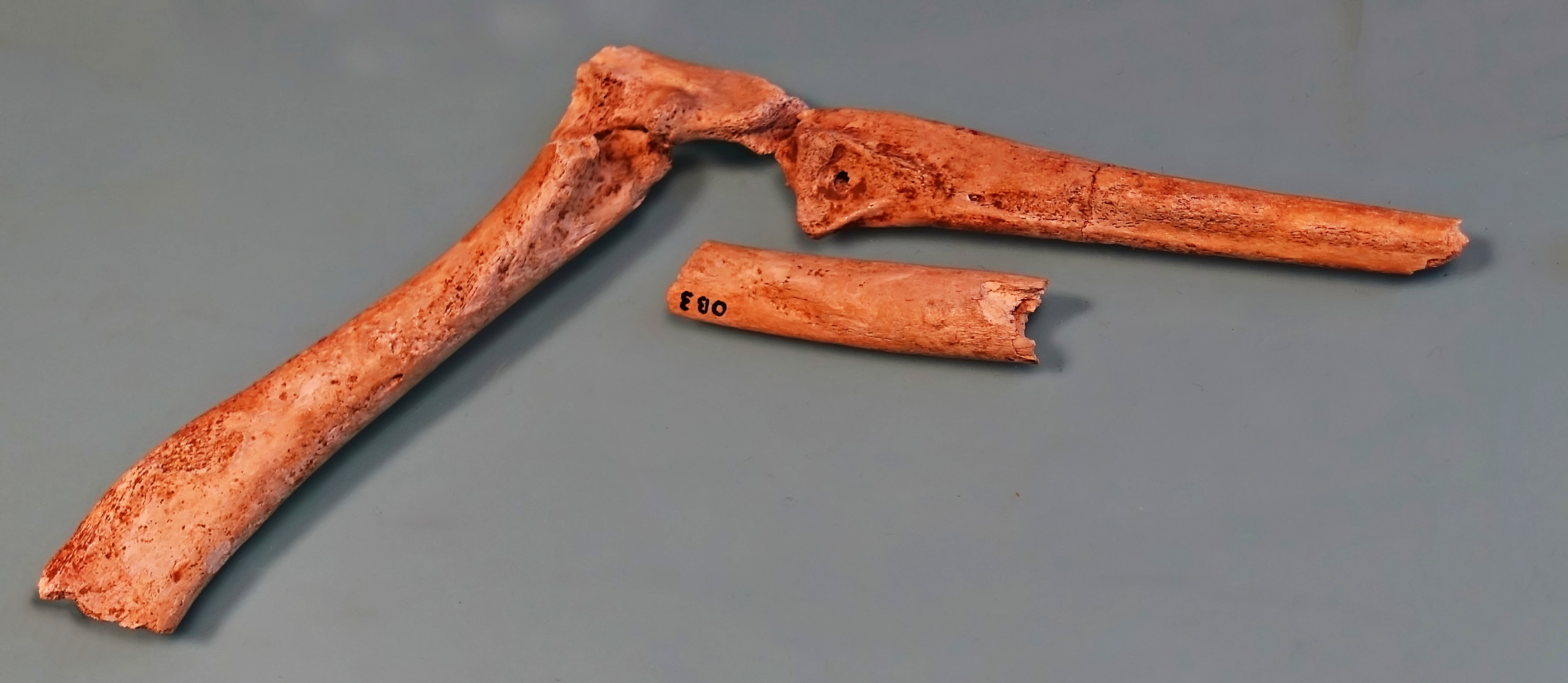

Bones of the dog buried with the two humans.

Photo: Don Hitchcock 2018
Source: Display, LVR-LandesMuseum Bonn, for the exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)




Haematite powder was found spread over the bodies and a number of small ornaments, pieces of 'jewellery', made of bone, antler and ivory: there was a penis bone of a brown bear, with cutting marks that were later covered with hematite; a bone stick (19 cm long) with an animal head (deer?) that was found near the woman’s head (a hairpin?) which shows strong polish marks of frequent use, Fig. 3; a damaged animal sculpture of elk antler, probably representing an elk, 110 mm long, 35 mm high, Fig. 4.

The male was quite sturdy and muscular (even for that time), about 168 cm tall, weight 72 kg. He was probably left-handed and had a (healed) broken right ulna and a less mobile right shoulder due to a heavy fall. Due to the handicap his left arm was even stronger than that of an ordinary left-handed person. He had lost two incisors from the lower jaw, and the upper jaw had lost all teeth but 4 molars. From his early youth he and the women must have been much on the move, very mobile. He had lost quite a few teeth and suffered from an inflammation in the lower jaw. Both showed signs of a medium strong peridontitis.

The female was more delicate even for a woman of that time, 159 cm tall and 54.5 kg in weight. She did not show any significance of a dominant arm and she had given birth to at least one child. The two persons were most probably relatives, however, the DNA analysis is not yet completed. Doubtlessly, they were tough people to earn their living and survive in a wild and dangerous environment with lots of risks, a much shorter lifetime (on the average) than we enjoy these days, and accidents or 'simple' inflammations easily brought them to the brink of death.
Text above: adapted from Bosinski (2014)

oberkassel
The burial.

Artwork: © Dario Koch
Photo: Michael Hesse
Source: Display, LVR-LandesMuseum Bonn, exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)




oberkassel site

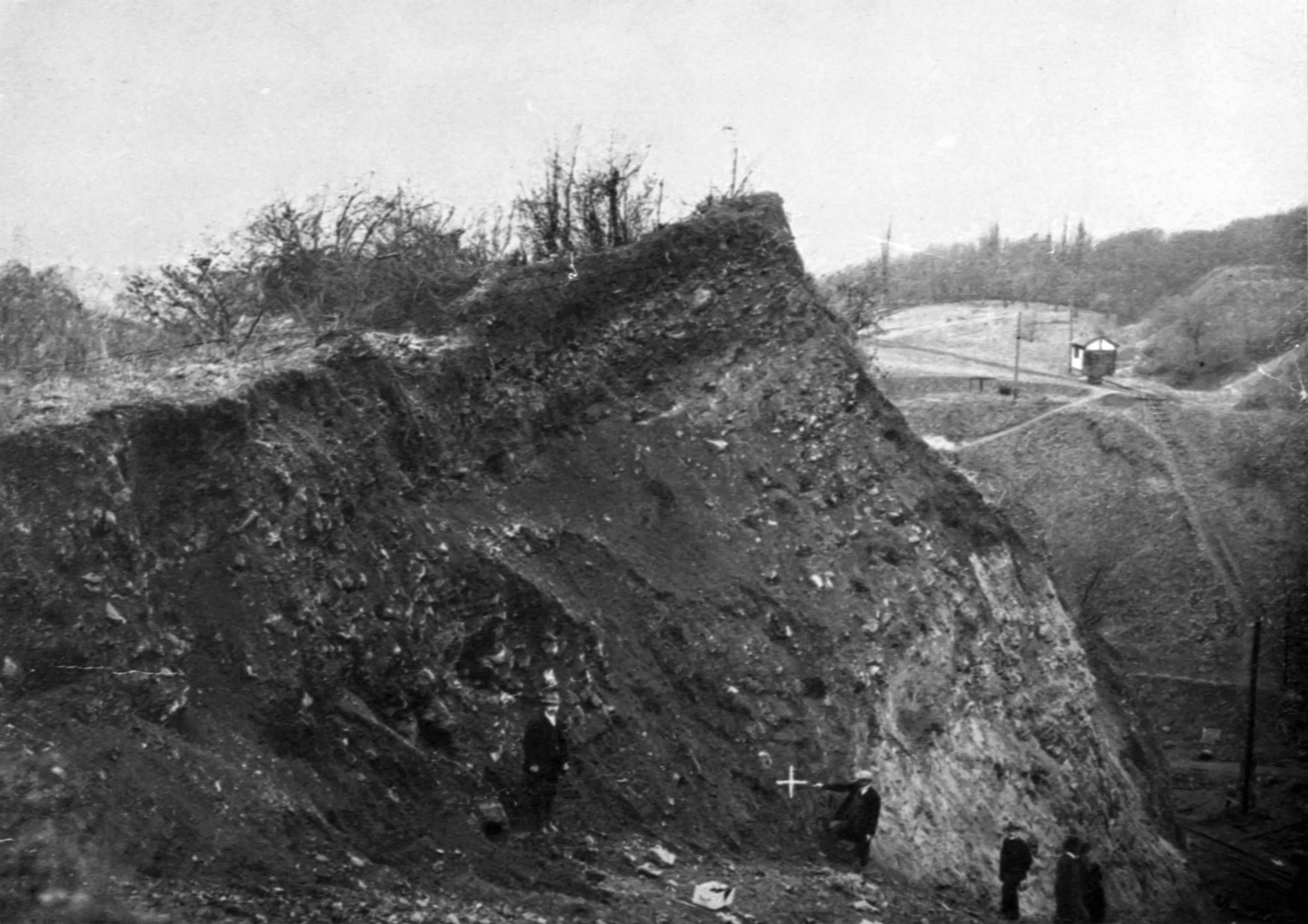

The original site of the discovery, marked on this photograph with a ' + '.

In February 1914 two workers when clearing debris in the quarry 'Am Stingenberg' discovered some bones, which they recognised as human remains. The bones and the surrounding soil they were coloured red. The bones were in good condition, the two skulls being almost unscathed. The work was interrupted and the teacher from Oberkassel, Franz Kissel, ensured that the discovery was preserved. Under one of the skulls was discovered an approximately 20 cm long, narrow bone article which was carved at one end. The skeletal remains were deposited in an old ammunition box that had contained that explosives for rock blasting.


The quarry owner Peter Uhrmacher reported the discovery to the University of Bonn. On 21 February, the physiologist Max Verworn, the anatomist Robert Bonnet and geographer Franz Heiderich went to Oberkassel. Since the notification of a 'hair pin', a piece of jewelery for a woman's hair that had been mentioned, the scientists initially believed that the discovery was from Roman or Frankish times. However, the hair pin they then recognised as a bone tool, which may have been used to scrape skins. (This is not possible, the head of the bone pin, see below, is much too small to have been used for this purpose - Don )

Photo: http://www.vfgarch.uni-bonn.de/aktuelles_vfg/symposium-100-years-of-the-bonn-oberkassel-double-burial
Text: adapted from http://de.wikipedia.org/wiki/Doppelgrab_von_Oberkassel




sapiens sapiens


(left) Sculpture of a female Homo sapiens sapiens, dressed for warm weather, or in shelter.

(right) Sculpture of a male Homo sapiens sapiens, dressed for cold weather, outside.

Photo: Don Hitchcock 2015
Sculptor: (left) Atelier Élisabeth Daynès, Paris, for the Neanderthal Museum, 1996.
Sculptor: (right) Unknown, but probably Atelier Élisabeth Daynès, Paris, for the Neanderthal Museum, 1996.
Source and text: Facsimile, Neanderthal Museum, Mettmann, near Düsseldorf, Germany

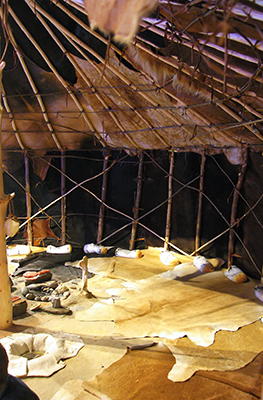

oberkassel hut oberkassel hut

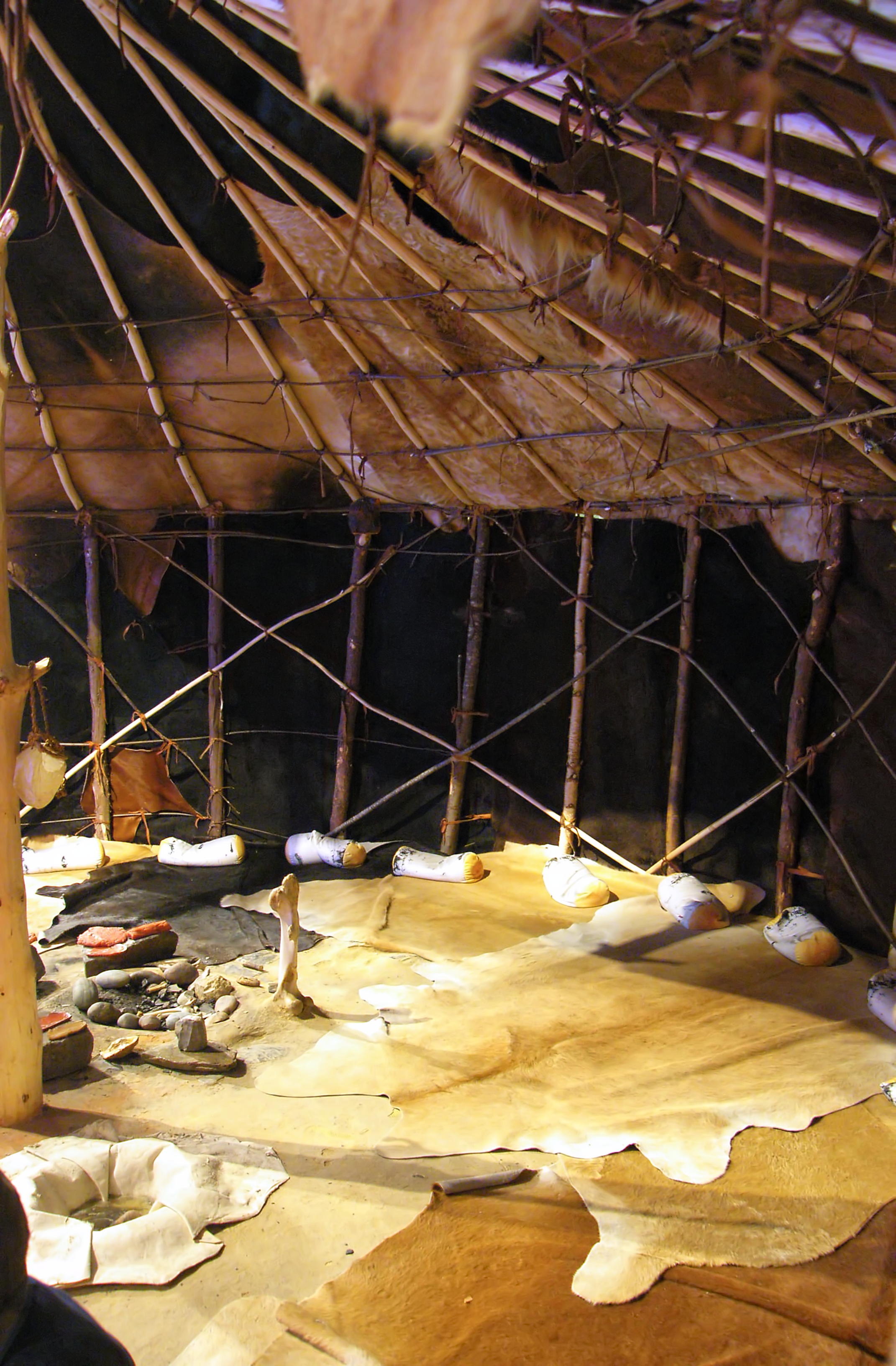

Leather covered tent, built like a yurt, which may have been used at Oberkassel.

Tents like this are also proposed for the archaeological site of Gönnersdorf.

If they were in fact used, they imply that the hunters lived in one area for a significant part of the year, since they are difficult and time consuming to make, erect, pull down and transport for reuse elsewhere.

Photo: Michael Hesse
Source: Display, LVR-LandesMuseum Bonn, exhibition 'Eiszeitjäger – Leben im Paradies?' (23.10.2014-28.06.2015)

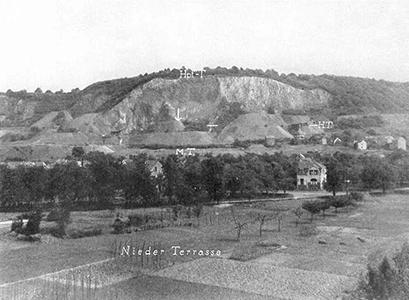

oberkassel site

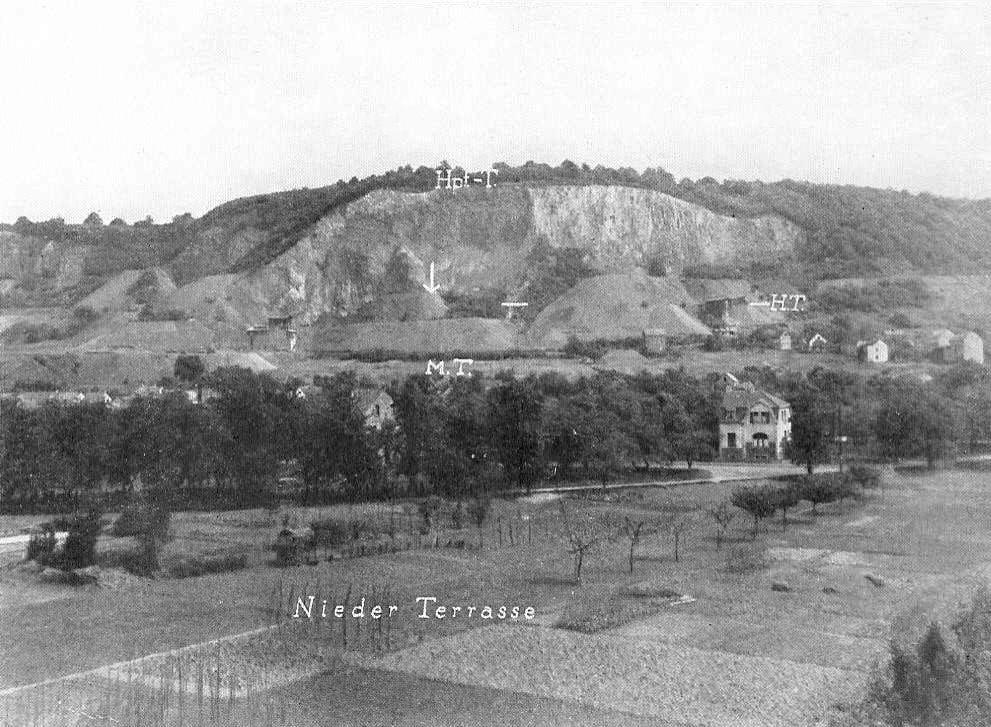

View of the basalt quarries on the Rabenley (taken from the west)

Abbreviations:

Hpf T. = Main terrace
H.-T. = high terrace
M.-T. = Middle Terrace

The white arrow indicates the position of the discovery layer.


Source: Verworn et al. (1919)
Photographer: M. Verworn
Date: published in 1914 and 1919
Other: Photographer passed away in 1921
Permission: Public Domain
Source and text: http://commons.wikimedia.org/wiki/File:Ok8.jpg




oberkassel site

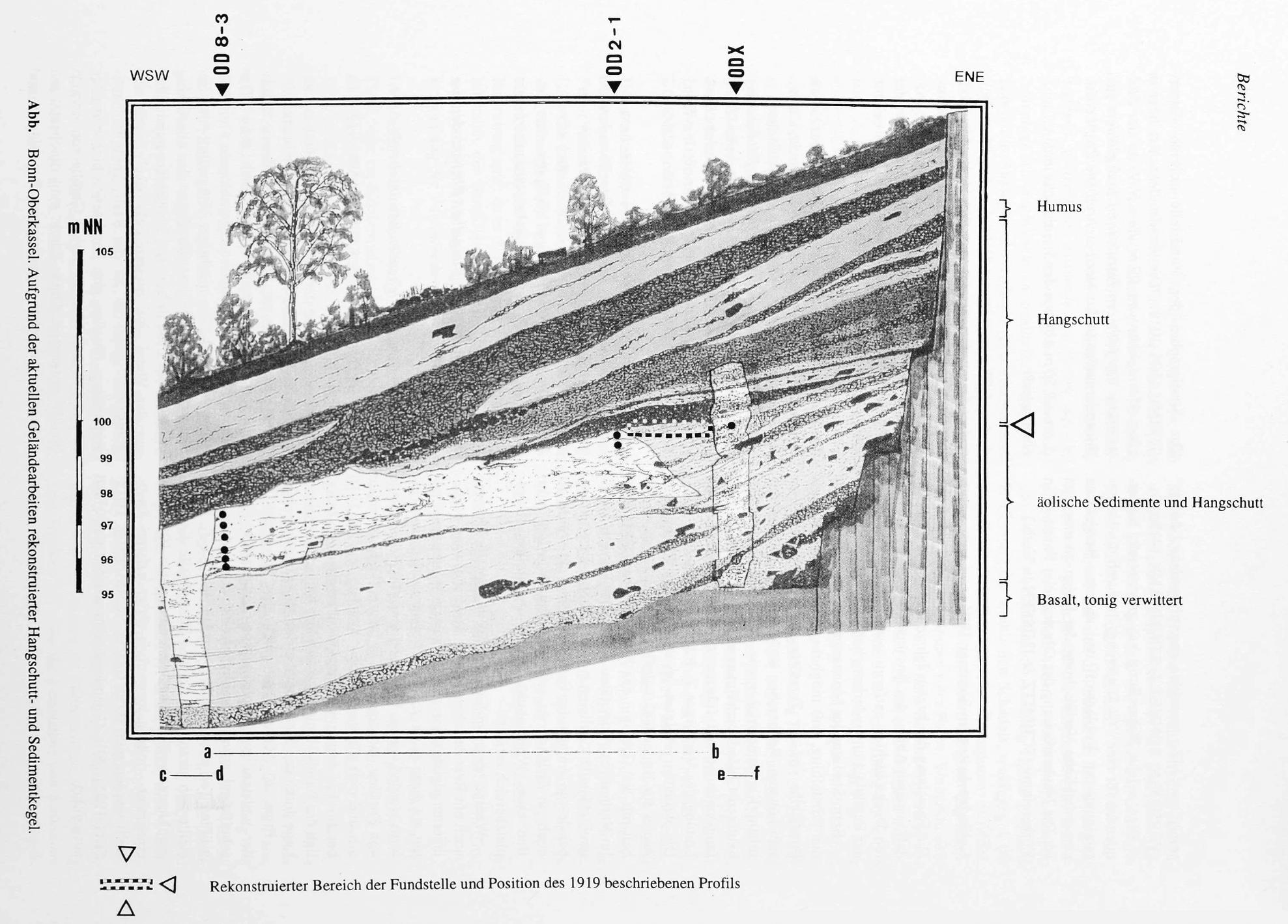

Reconstructed area of the site and position of the profile described in 1919.

Source: Schmitz und Thissen (1996)




A series of 8 sandy-loess and sand samples from the profile (marked with dots in the diagram above, at 002-1 and 008-3) have an age from 12 180 to 11 170 years BP, and a sample from the uppermost sand of the profile ef (OD X) gives a date of 12 090 years BP, also in this period.

IRSL data from Oberkassel:

OD 1 11 870 ± 1 030 BP (cal. 13 708 BP)
OD 2 11 420 ± 1 240 BP (cal. 13 271 BP)
OD 3 12 180 ± 1 750 BP (cal. 13 973 BP)
OD 4 11 780 ± 1 910 BP (cal. 13 682 BP)
OD 5 11 170 ± 1,780 BP (cal. 12 977 BP)
OD 6 11 380 ± 920 BP (cal. 13 221 BP)
OD 7 11 210 ± 1 400 BP (cal. 13 023 BP)
OD 8 11 430 ± 1 540 BP (cal. 13 279 BP)
ODX 12 090 ± 2 744 BP (cal. 14 041 BP)

Source: Schmitz und Thissen (1996)

Note that these 14C dates need to be calibrated to give the calendar dates shown, according to the graph below.

Because the amount of 14C in the atmosphere has not been constant over the last 50 000 years, we cannot just use the theoretical age based on the decay of carbon 14 atoms.

14C dates typically give dates which are younger than the real age of the sediments or objects tested. By comparing objects with a known age with the 14C dates calculated for them, the conversion spreadsheet was constructed.

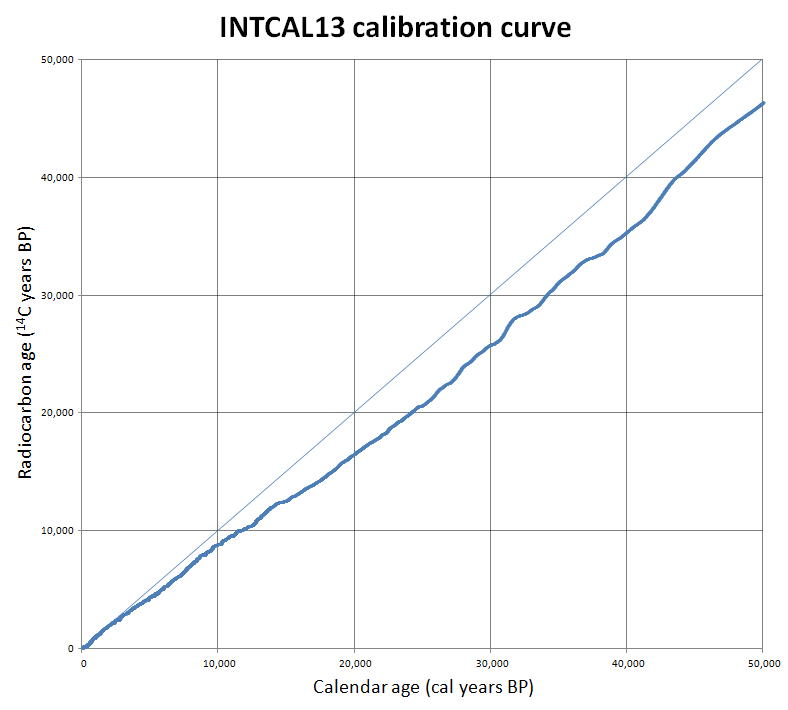

carbon 14 calibration curve





The Northern hemisphere curve from INTCAL13.

As of 2014 this is the most recent version of the standard calibration curve.

The diagonal line shows where the curve would lie if radiocarbon ages and calendar ages were the same.

At the time of writing, the following is a calculator which allows anyone to type in a radiocarbon age, and get the calibrated, actual calendar age.

Note that you must put in a value for the ± error, but it does not matter what it is:

calibration calculator

Photo and text: Wikipedia








References

  1. Bosinski G., 2014: Eiszeitjäger, Leben im Paradies – Europa vor 15.000 Jahren, Begleitbuch zur Ausstellung LVR-LandesMuseum Bonn 2014, ISBN 978-3-943904-80-2, Nünnerich-Asmus
  2. Qiaomei F. et al., 2013: A Revised Timescale for Human Evolution Based on Ancient Mitochondrial Genomes, Current Biology, Volume 23, Issue 7, p553–559, 8 April 2013
  3. Schmitz R., Thissen J., 1996: Aktuelle Untersuchungen zum endpleistozänen / frühholozänen Fundplatz Bonn-Oberkassel - ein Vorbericht. Archäologische Informationen 1&2/96: 197-203; Bonn.
  4. Veil S., Breest K., Grootes P., Nadeau M., Hüls M., 2012: A 14 000-year-old amber elk and the origins of northern European art Antiquity 86 (2012): 660–673
  5. Verworn M., Bonnet R., Steinmann G., 1919: Der diluviale Menschenfund von Obercassel bei Bonn Wiesbaden
